Automatic Guided Balanced Weight Forklift ▪ CPD15-YD

Share to:

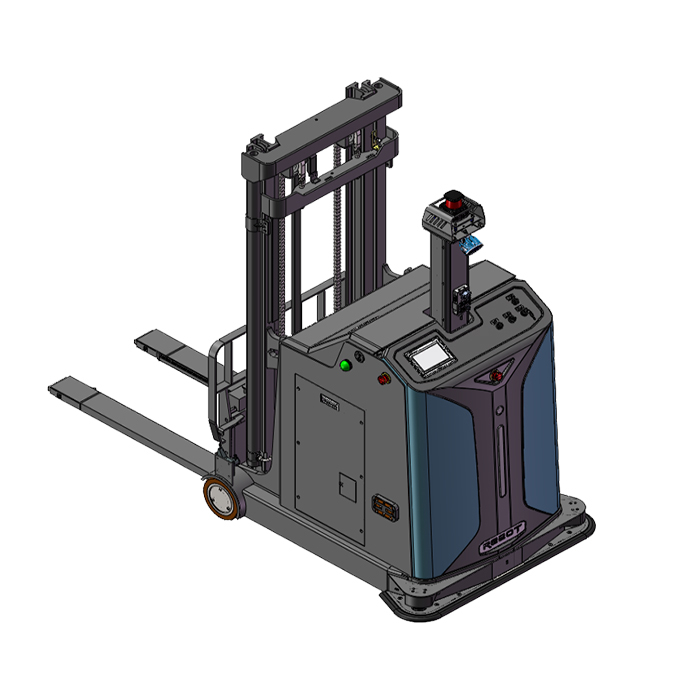

Automatic Guided Balanced Weight Forklift ▪ CPD15-YD

Equipped with a steering wheel and double balance wheels, it provides more stable turning and reduces the risk of losing position due to wheel wear. The overall welded body ensures higher strength, better accuracy, and more stable AGV lifting. Vertical steering wheel+AC drive motor+hydraulic suspension automatic adjustment system+servo steering system, with accurate positioning and good controllability.

Availability:



Inquire Add to Basket

Product Description

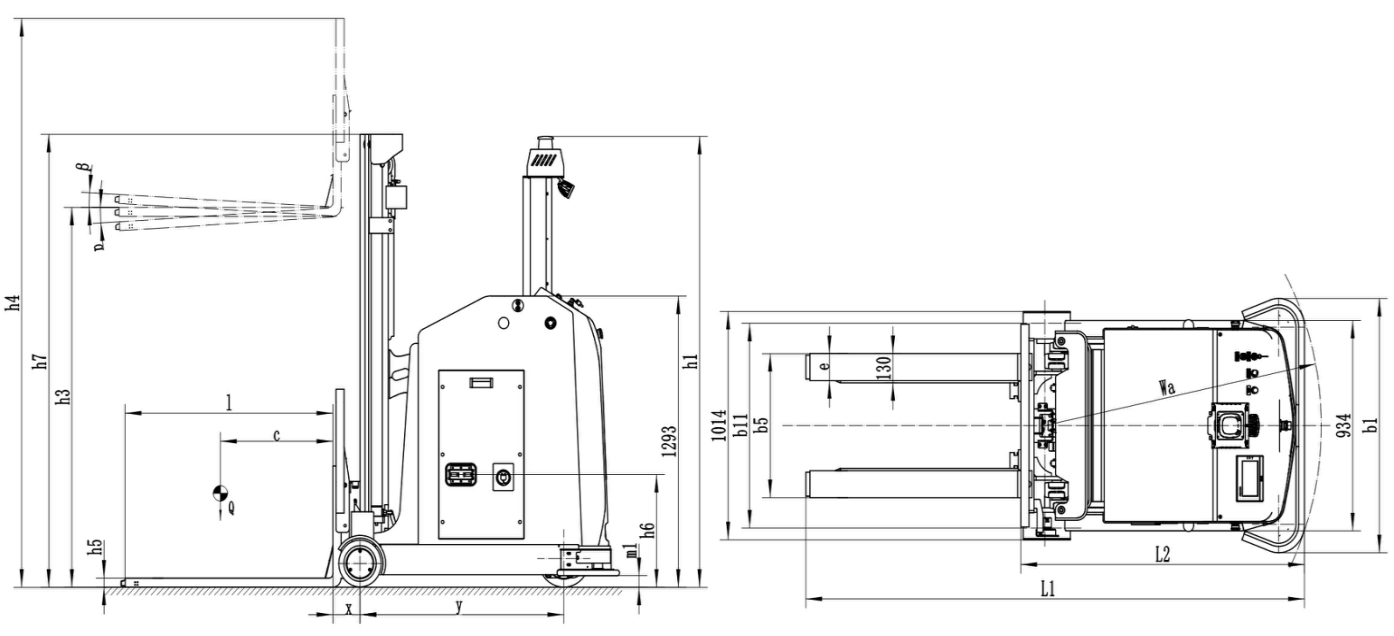

Overall Dimension	Loading Parameter

Characteristic	1.1	Style NO			CPD15-YD(Two-Stages Standard Mast)	CPD15-YD(Three stages)
	1.2	Power Type			Electric
	1.3	Drive			AGV
	1.4	Rated Load Capacity	Q	kg	1500
	1.5	Load Centre Distance	c	mm	500
	1.6	Front Overhang	x	mm	133
	1.7	Wheel Base	y	mm	1000
Weight	2.1	Weight(including accumulator )		kg	2700	2850
	2.2	Gross Axle Weight, Drive side/Steering Bearing side		kg
	2.3	Unloaded Axle Weight, Drive side/Steering Bearing side		kg
Wheel	3.1	Tyres Type			PU
	3.2	Drive Wheel Size	Φ×W	mm	Φ254×100
	3.3	Steering Wheel Size	Φ×W	mm	Φ210×85
	3.4	Tyres Quanity，Drive Wheel/Steering Wheel			1x/2
	3.5	Tread, Steering side	b11	mm	909
Size	4.1	Overall Height	h1	mm	2002
	4.2	Free Lift Height	h2	mm	0	1540
	4.3	Lift Height	h3	mm	3000	4500
	4.4	Mast Extended Height	h4	mm	3840	5340
	4.5	Lowered Fork Height ( Forks are at their lowest position)	h5	mm	50
	4.6	Charger Brush Ground Clearance	h6	mm	500
	4.7	货叉倾斜角度，前倾/后倾	α/β	°	0
	4.8	Overall Length	L1	mm	2447
	4.9	Frame Length(not including fork)	L2	mm	1392
	4.10	Overall Width	b1	mm	1129
	4.11	Fork Size	l/e/s	mm	950/100/40
	4.12	Fork Outside Width	b5	mm	250~764
	4.13	Min Ground Clearance	m1	mm	50
	4.14	Min Turning Radius	Wa	mm	1357
	4.15	Min 90 Turning Aisle	Ast	mm	2570+200
	4.16	Pallet size 1000×1000 90 Turning Aisle	Ast	mm	2600+200
others	7.2	Noise		dB(A)	≤75

Mast Parameter	Two-Stages Mast	8.1	Free lift height	h2	mm	0	0	0	0	0	0	0	0	0
		8.2	lift height	h3	mm	2000	2300	2500	2700	3000	3300	3500	3700	4000
		8.3	Mast Extended Height	h4	mm	2840	3140	3340	3540	3840	4140	4340	4540	4840
		8.4	Closed Height	h7	mm	1510	1660	1760	1860	2010	2160	2260	2360	2560
	Three stages	8.1	Free lift height	h2	mm	1240	1240	1340	1420	1540	1740	1800	1840	2040
		8.2	lift height	h3	mm	3500	3700	4000	4300	4500	5000	5300	5500	6000
		8.3	Mast Extended Height	h4	mm	4340	4540	4840	5140	5340	5840	6140	6340	6840
		8.4	Closed Height	h7	mm	1705	1805	1905	2005	2055	2205	2305	2405	2605
