Automatic Guided Stacker Truck ▪ CDD14-YD

Share to:

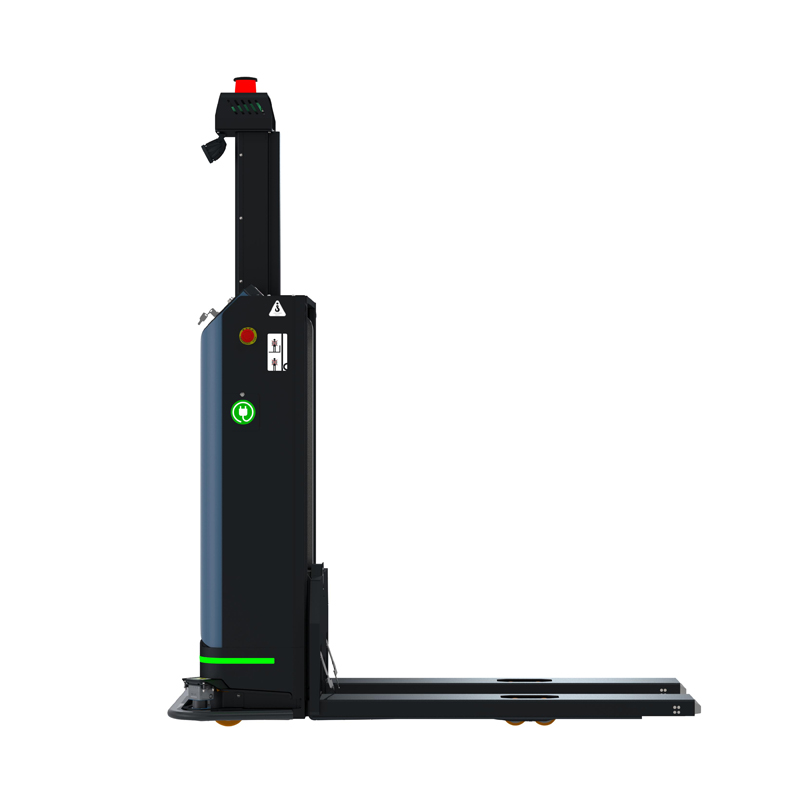

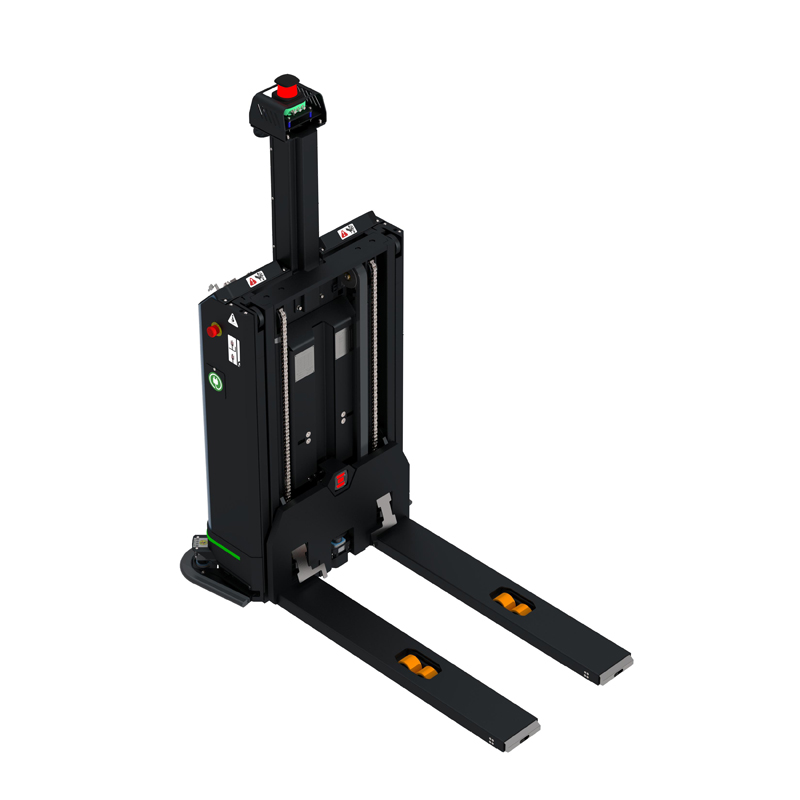

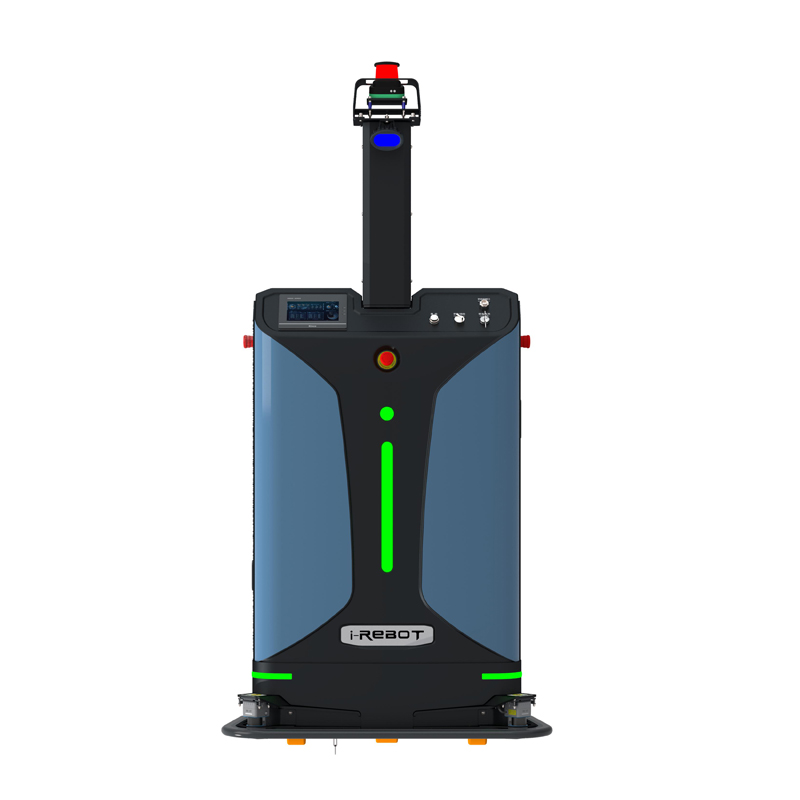

Automatic Guided Stacker Truck ▪ CDD14-YD

Mid mounted steering wheel+double balance wheel, more stable turning, less likely to lose position due to wheel wear. The overall welded body ensures higher strength, better accuracy, and more stable AGV lifting. Vertical steering wheel+AC drive motor+hydraulic suspension automatic adjustment system+servo steering system, with accurate positioning and good controllability.

Availability:



Inquire Add to Basket

Product Description

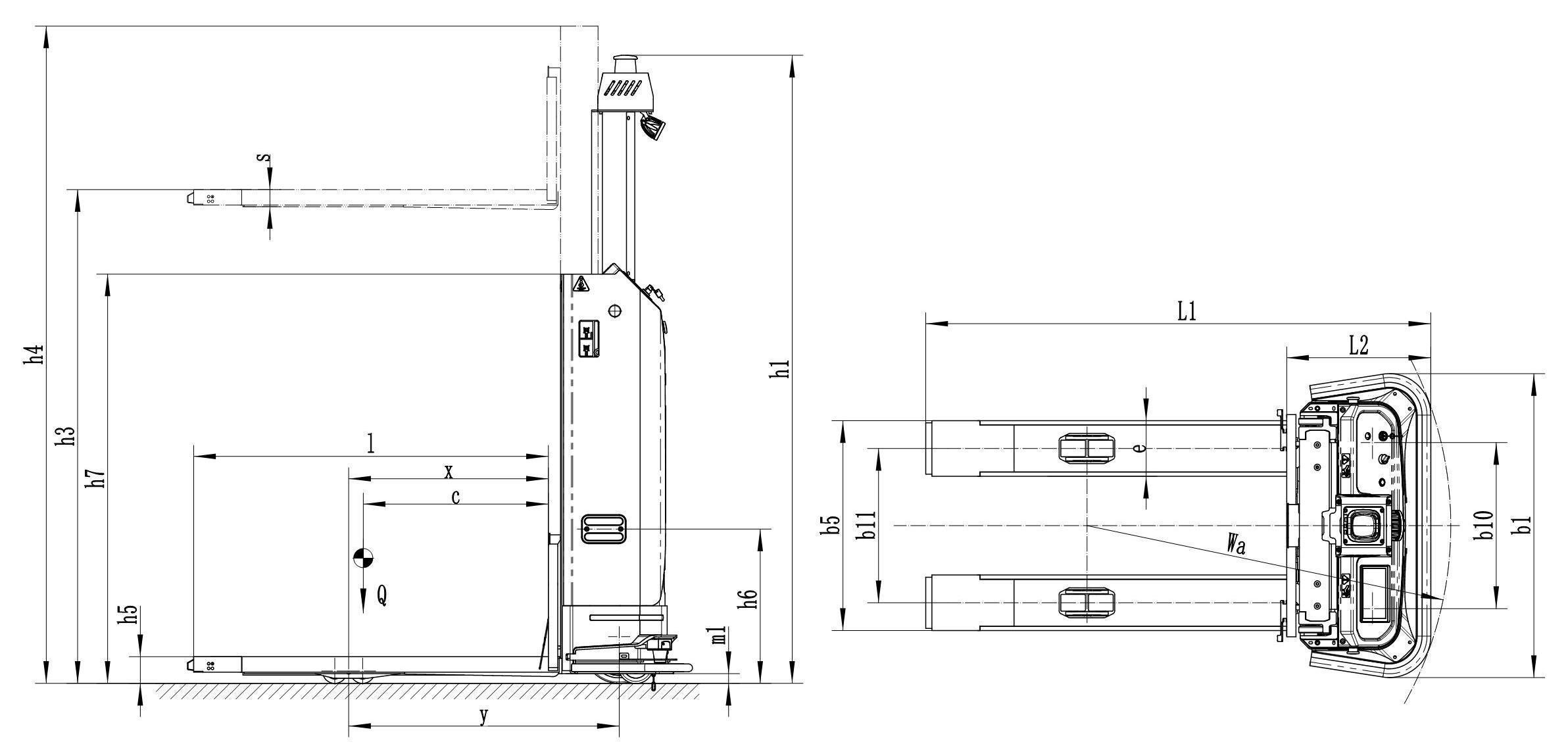

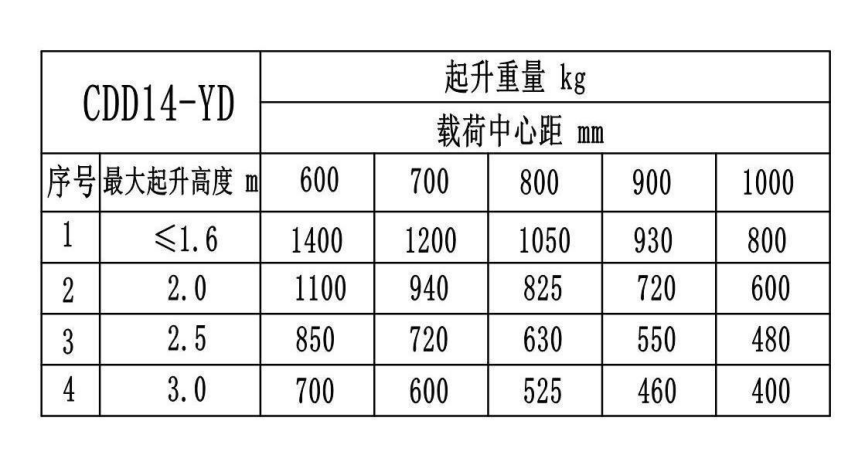

Overall Dimension	Loading Parameter

Characteristic	1.1	STYLE NO			CDD14-YD（24V）	CDD14-YD（48V）
	1.2	Power Type			Electric
	1.3	Drive			AGV
	1.4	Rated load capacity	Q	kg	1400
	1.5	Load centre distance	c	mm	600
	1.6	Front overhang	x	mm	648
	1.7	Wheel base	y	mm	877
Weight	2.1	Weight(including accumulator )		kg	680
	2.2	Gross Axle Weight, drive side/Load Bearing side		kg	730/1350
	2.3	Unloaded Axle Weight, drive side/Load Bearing side		kg	450/230
Wheel	3.1	Tyres type			PU
	3.2	Drive Wheel	Φ×W	mm	Φ230×75
	3.3	Load Wheel	Φ×W	mm	Φ80×54
	3.4	Stabilizer Wheel	Φ×W	mm	Φ115×55
	3.5	Tyres quanity			1x-2/4
	3.6	Tread, drive side	b10	mm	538
	3.7	Tread, load side	b11	mm	500
Size	4.1	Overall Height	h1	mm	2035
	4.2	Free Lift Height	h2	mm	0
	4.3	Lift Height	h3	mm	1600
	4.4	Mast Extended Height	h4	mm	2085
	4.5	Lowered Fork Height ( Forks are at their lowest position)	h5	mm	85
	4.6	Charger Brush Ground Clearance	h6	mm	500
	4.7	Overall Length	L1	mm	1637
	4.8	Frame Length(not including fork)	L2	mm	467
	4.9	Overall Width	b1	mm	985
	4.10	Fork size	l/e/s	mm	1150/180/55
	4.11	Fork Outside Width	b5	mm	680
	4.12	Min Ground Clearance	m1	mm	31.5
	4.13	Min Turning Radius	Wa	mm	1180
	4.14	Min 90 Turning Aisle	Ast	mm	1800+200
	4.15	Pallet size 1000×1200 90 Turning Aisle	Ast	mm	1925+200
Note	7.1	Noise		dB(A)	≤75
