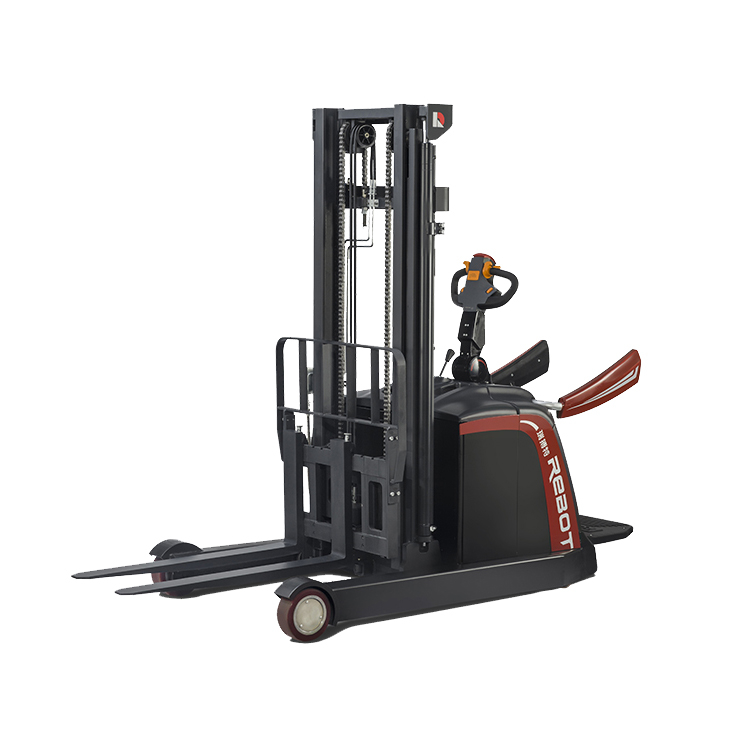

| Characteristic | 1.1 | Manufacture | i-REBOT | |||||
| 1.2 | STYLE NO | CQD16 | CQD16(Level 3） | CQD20 | CQD20(Level 3） | |||
| 1.3 | Power Type | Electric | ||||||
| 1.4 | Drive | Stand-on | ||||||
| 1.5 | Rated capacity | Q | kg | 1600 | 1600 | 2000 | 2000 | |
| 1.6 | Load center | c | mm | 500 | 500 | 500 | 500 | |
| 1.7 | Front overhang | x | mm | 110 | 133 | 110 | 133 | |
| 1.8 | Wheel base | y | mm | 1325 | 1420 | 1475 | 1570 | |
| Weight | 2.1 | Weight(including accumulator ) | kg | 2320/2300 | 2560/2540 | 2370/2350 | 2320/2300 | |
| 2.2 | Gross Axle Weight, Drive side/Steering Bearing side | kg | 1598/2325 | 1680/2520 | 1569/2800 | 1680/2520 | ||
| 2.3 | Unloaded Axle Weight, Drive side/Steering Bearing side | kg | 1639/684 | 1820/780 | 1652/717 | 1820/780 | ||
| Wheel | 3.1 | Tyres type | PU | |||||
| 3.2 | Drive Wheel | mm | Φ230×75 | |||||
| 3.3 | Load Wheel | mm | Φ210×85 | |||||
| 3.4 | Steering Wheel | mm | Φ140×60 | |||||
| 3.5 | Wheel Quantity：Drive Wheel/Caster(×=Drive Wheel)/Caster | 1×-2/2 | ||||||
| 3.6 | Tread, Load Side | b10 | mm | 985 | ||||
| 3.7 | Tread, Drive Side | b11 | mm | 696 | ||||

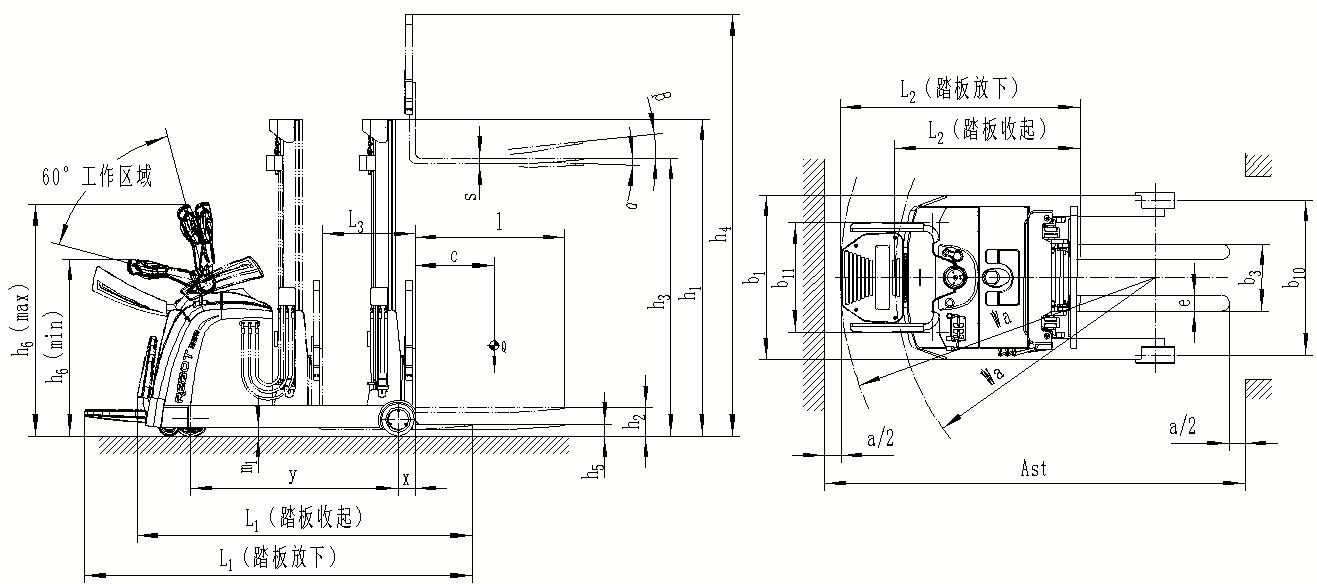

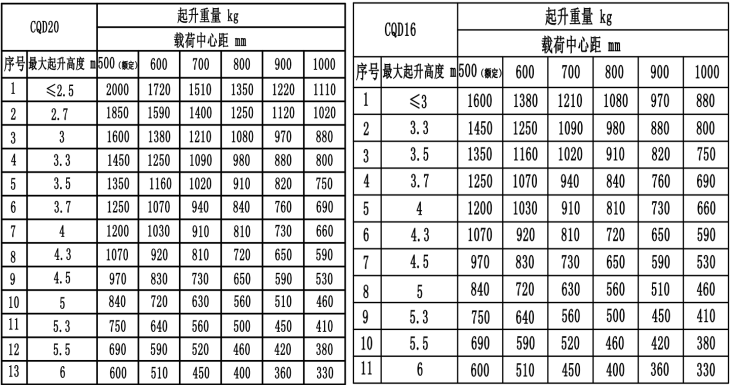

| Size | 4.1 | Mast Tilt Angle：Front/Back | α/β | deg | 1°/5° | 1°/5° | 1°/5° | 1°/5° |
| 4.2 | Overall Height | h1 | mm | 2015 | 2062 | 2015 | 2062 | |
| 4.3 | Free Lift Height | h2 | mm | 0 | 1220 | 0 | 1540 | |
| 4.4 | Lift Height | h3 | mm | 3000 | 4500 | 2500 | 4500 | |
| 4.5 | Mast Extended Height | h4 | mm | 3912 | 5338 | 3412 | 5340 | |
| 4.6 | Height of operating lever in driving position: Min./Max. | h6 | mm | 1125/1475 | ||||
| 4.7 | Lowered Fork Height ( Forks are at their lowest position) | h5 | mm | 40 | ||||
| 4.8 | Overall Length：Pedal Stowed/Pedal Lowered | L1 | mm | 2248/2583 | 2251/2586 | 2398/2733 | 2503/2838 | |
| 4.9 | Frame Length（not including fork）：Pedal Stowed/Pedal Lowered | L2 | mm | 1178/1513 | 1301/1636 | 1328/1663 | 1453/1788 | |
| 4.10 | Forward Reach | L3 | mm | 590 | ||||
| 4.11 | Overall Width | b1 | mm | 1090 | ||||
| 4.12 | Fork Size L*W*H | l/e/s | mm | 950/100/40 | ||||
| 4.13 | Fork Outside Width | b3 | mm | 215~754 | ||||
| 4.14 | Min Ground Clearance | m1 | mm | 55 | ||||
| 4.15 | 90 Turning Aisle,Pallet size 1000×1200（1200Lengthwise on the Forks））：Pedal Stowed/Pedal Lowered | Ast | mm | 2652/2972 | 2752/3072 | 2802/3122 | 2717/3064 | |
| 4.16 | 90 Turning Aisle,Pallet size 800×1200（800Lengthwise on the Forks）：Pedal Stowed/Pedal Lowered | Ast | mm | 2682/3002 | 2782/3102 | 2832/3152 | 2752/3099 | |
| 4.17 | Min Turning Radius：Pedal Stowed/Pedal Lowered | Wa | mm | 1658/1978 | 1758/2078 | 1808/2128 | 1908/2255 | |
| Others | 7.1 | Drive Control Method | AC Speed Feedback | |||||
| 7.2 | Noise，EN12053 | dB(A) | ≤70 | |||||
| CQD16 Two-Stage Mast Parameters | ||||||
| SN | Lift Height h3（mm） | Lowered Mast Height h1（mm） | Full Free Lift h2(mm) | Overall Height h4(mm) | Tilt Angle α/β（°） | Note |
| 1 | 2000 | 1515 | 0 | 2912 | 1/5 | |
| 2 | 2300 | 1665 | 0 | 3212 | 1/5 | |
| 3 | 2500 | 1765 | 0 | 3412 | 1/5 | |
| 4 | 2700 | 1865 | 0 | 3612 | 1/5 | |
| 5 | 3000 | 2015 | 0 | 3912 | 1/5 | |
| 6 | 3300 | 2165 | 0 | 4212 | 1/5 | |
| 7 | 3500 | 2265 | 0 | 4412 | 1/5 | |
| 8 | 3700 | 2365 | 0 | 4612 | 1/5 | |
| 9 | 4000 | 2565 | 0 | 5012 | 1/5 | |
| CQD16 Three-Stage Mast Parameters | ||||||
| SN | Lift Height h3（mm） | Lowered Mast Height h1（mm） | Full Free Lift h2(mm) | Overall Height h4(mm) | Tilt Angle α/β（°） | Note |
| 1 | 3500 | 1712 | 870 | 4338 | 1/5 | |
| 2 | 3700 | 1812 | 970 | 4538 | 1/5 | |
| 3 | 4000 | 1912 | 1070 | 4838 | 1/5 | |
| 4 | 4300 | 2012 | 1170 | 5138 | 1/5 | |
| 5 | 4500 | 2062 | 1220 | 5338 | 1/5 | |
| 6 | 5000 | 2212 | 1370 | 5838 | 1/5 | |
| 7 | 5300 | 2312 | 1470 | 6138 | 1/5 | |
| 8 | 5500 | 2412 | 1570 | 6338 | 1/5 | |
| 9 | 6000 | 2612 | 1770 | 6838 | 1/5 | |
| CQD20Two-Stage Mast Parameters | ||||||
| SN | Lift Height h3（mm） | Lowered Mast Height h1（mm） | Full Free Lift h2(mm) | Overall Height h4(mm) | Tilt Angle α/β（°） | Note |
| 1 | 2000 | 1515 | 0 | 2912 | 1/5 | |
| 2 | 2300 | 1665 | 0 | 3212 | 1/5 | |
| 3 | 2500 | 1765 | 0 | 3412 | 1/5 | |
| 4 | 2700 | 1865 | 0 | 3612 | 1/5 | |
| 2 | 3700 | 1812 | 970 | 4540 | 1/5 | |
| 3 | 4000 | 1912 | 1070 | 4840 | 1/5 | |
| 4 | 4300 | 2012 | 1170 | 5140 | 1/5 | |
| 5 | 4500 | 2062 | 1220 | 5340 | 1/5 | |
| 6 | 5000 | 2212 | 1370 | 5840 | 1/5 | |
| 7 | 5300 | 2312 | 1470 | 6140 | 1/5 | |
| 8 | 5500 | 2412 | 1570 | 6340 | 1/5 | |
| 9 | 6000 | 2612 | 1770 | 6840 | 1/5 | |
