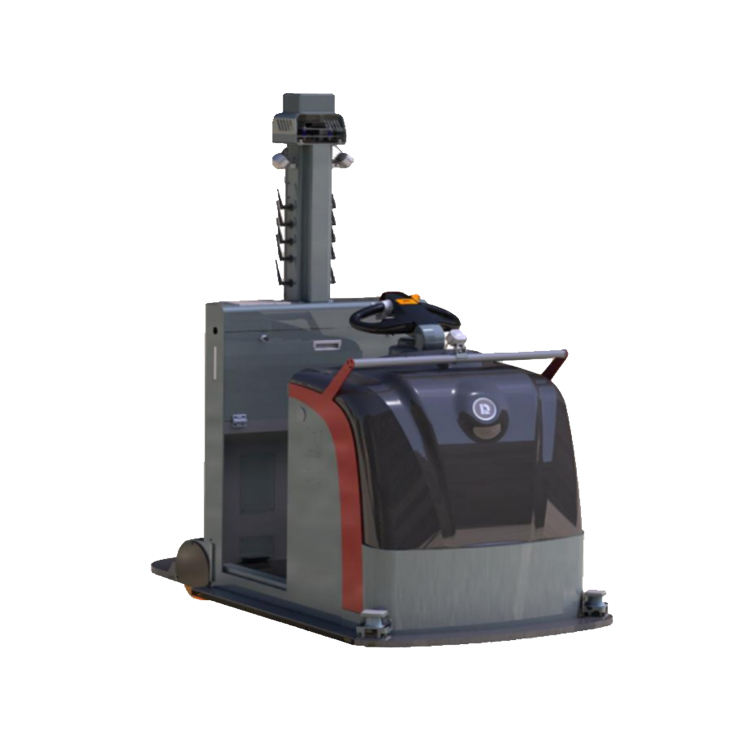

Automatic Guided Tractor ▪ QDD30/50-AGV

Mid mounted steering wheel+double balance wheel, more stable turning, less likely to lose position due to wheel wear. The overall welded body ensures higher strength, better accuracy, and more stable AGV lifting. Vertical steering wheel+AC drive motor+hydraulic suspension automatic adjustment system+servo steering system, with accurate positioning and good controllability.

Availability:



Inquire Add to Basket

Product Description

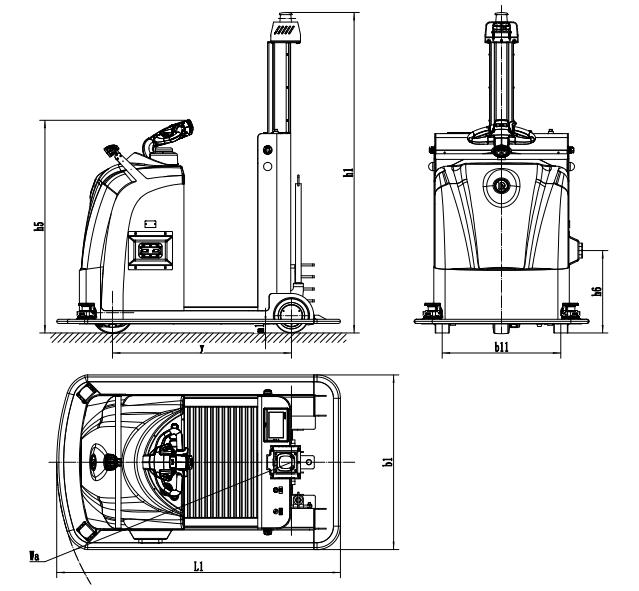

AGV-Tow-Tractors-QDD30-50-AGV外观图

Characteristic	1.1	STYLE NO			QDD30-AGV	QDD50-AGV
	1.2	Power Type			Electric
	1.3	Drive			AGV
	1.4	Rated load capacity	Q	kg	3000	5000
	1.5	Wheel base	y	mm	1085
Weight	2.1	Weight(Including Accumulator )		kg
	2.2	Gross Axle Weight, Drive Side/Load Bearing side		kg
	2.3	Unloaded Axle Weight, Drive Side/Load Bearing side		kg
Tyres	3.1	Tyres type			PU
	3.2	Drive Wheel Size	Φ×W	mm	Φ230×75	Φ250×100
	3.3	Load Wheel Size	Φ×W	mm	Φ210×85
	3.4	Tyres Quanity，Load Side(×=Load Wheel)/Load Side			1x-2
	3.5	Tread, Load Side	b11	mm	719
Size	4.1	Overall Height(Including Navigation Mast)	h1	mm	1966.5
	4.2	Operating Height in Driving Position	h5	mm	1289
	4.3	Charger Brush Ground Clearance	h6	mm	500
	4.4	Overall Length	L1	mm	1720
	4.5	Overall Width	b1	mm	1060
	4.6	Min Ground Clearance	m1	mm	55
	4.7	Min Turning Radius	Wa	mm	1422
Others	7.1	Noise		dB(A)	≤70
