| Characteristic | 1.1 | STYLE NO |
|
| CDD20-YD(Two-Stages Mast) | CDD20-YD(Three-Stages Mast) |
| 1.2 | Power Type |
|
| Electric |
| 1.3 | Drive |
|
| AGV |
| 1.4 | Rated load capacity | Q | kg | 2000 |
| 1.5 | Load centre distance | c | mm | 600 |
| 1.6 | Front overhang | x | mm | 650 |
| 1.7 | Wheel base | y | mm | 1152 | 1203 |
| Weight | 2.1 | Weight(Including Accumulator ) |
| kg | 1150 | 1340 |
| 2.2 | Gross Axle Weight, Drive Side/Load Bearing side |
| kg | 913/2237 | 990/1320 |
| 2.3 | Unloaded Axle Weight, Drive Side/Load Bearing side |
| kg | 827/323 | 953/387 |
| Tyres | 3.1 | Tyres type |
|
| PU |
| 3.2 | Drive Wheel Size | Φ×W | mm | Φ230×75 |
| 3.3 | Load Wheel Size | Φ×W | mm | Φ80×65 |
| 3.4 | Stabilizer Wheel Szie | Φ×W | mm | Φ115×55 |
| 3.5 | Tyres Quanity，Load Side(×=Load Wheel)/Load Side |
|
| 1x-2/4 |
| 3.6 | Tread, Load Side | b10 | mm | 630 |
| 3.7 | Tread, Drive Side | b11 | mm | 500 |

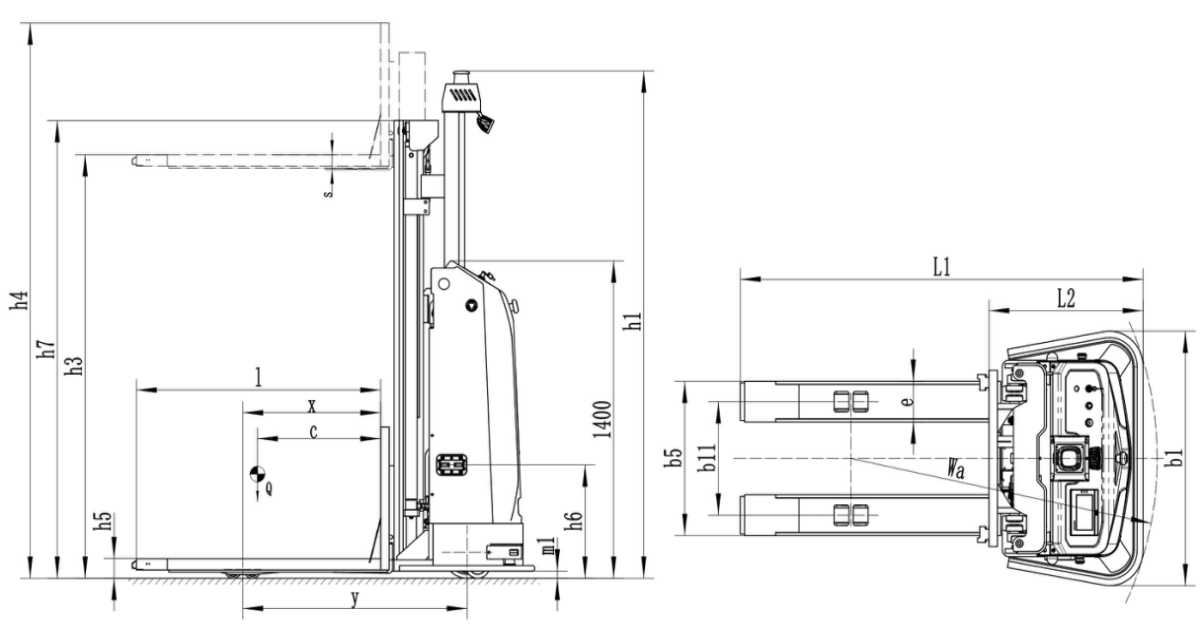

| Size | 4.1 | Overall Height(Including Navigation Mast) | h1 | mm | 2235 |
| 4.2 | Free Lift Height | h2 | mm | 0 | 1585 |
| 4.3 | Lift Height | h3 | mm | 3000 | 4500 |
| 4.4 | Mast Extended Height | h4 | mm | 3575 | 5075 |
| 4.5 | Lowered Fork Height ( Forks are at their lowest position) | h5 | mm | 85 |
| 4.6 | Charger Brush Ground Clearance | h6 | mm | 500 |
| 4.7 | Overall Length | L1 | mm | 1983 | 2034 |
| 4.8 | Frame Length(not Including Fork) | L2 | mm | 743 | 794 |
| 4.9 | Overall Width | b1 | mm | 1048 |
| 4.10 | Fork Size L*W*H | l/e/s | mm | 1220/180/72 |
| 4.11 | Fork Outside Width | b5 | mm | 680 |
| 4.12 | Min Ground Clearance | m1 | mm | 32 |
| 4.13 | Min Turning Radius | Wa | mm | 1433 | 1482 |
| 4.14 | Min 90 Turning Aisle | Ast | mm | 2110+200 | 2160+200 |
| 4.15 | 90 Turning Aisle,Pallet size 1000×1200（1200Lengthwise on the Forks） | Ast | mm | 2177+200 | 2226+200 |
| Others | 7.1 | Noise |
| dB(A) | ≤75 |
