| Characteristic | 1.1 | STYLE NO | CBD20HA-YD | CBD30H-YD | ||
| 1.2 | Power Type | Electric | ||||
| 1.3 | Drive B | AGV | ||||
| 1.4 | Rated load capacity | Q | kg | 2000 | 3000 | |
| 1.5 | Load Centre Distance | c | mm | 600 | ||
| 1.6 | Front Overhang | x | mm | 930 | ||
| 1.7 | Wheel Base | y | mm | 1189 | ||
| Weight | 2.1 | Weight(Including accumulator ) | kg | 590 | ||
| 2.2 | Gross Axle Weight, Drive side/Load Bearing side | kg | 1045/1545 | 1320/2270 | ||
| 2.3 | Unloaded Axle Weight, Drive side/Load Bearing side | kg | 490/100 | |||
| Wheel | 3.1 | Tyres Type | PU | |||
| 3.2 | Drive Wheel Size | Φ×W | mm | Φ230×75 | ||
| 3.3 | Load Wheel Szie | Φ×W | mm | Φ80×80 | ||
| 3.4 | Stabilizer Wheel Size | Φ×W | mm | Φ115×55 | ||
| 3.5 | Tyres Quanity： Drive Wheel（×= Drive Wheel）/Load Wheel | 1x-2/4 | ||||
| 3.6 | Tread, Drive side | b10 | mm | 498 | ||
| 3.7 | Tread, Load side | b11 | mm | 500 | ||

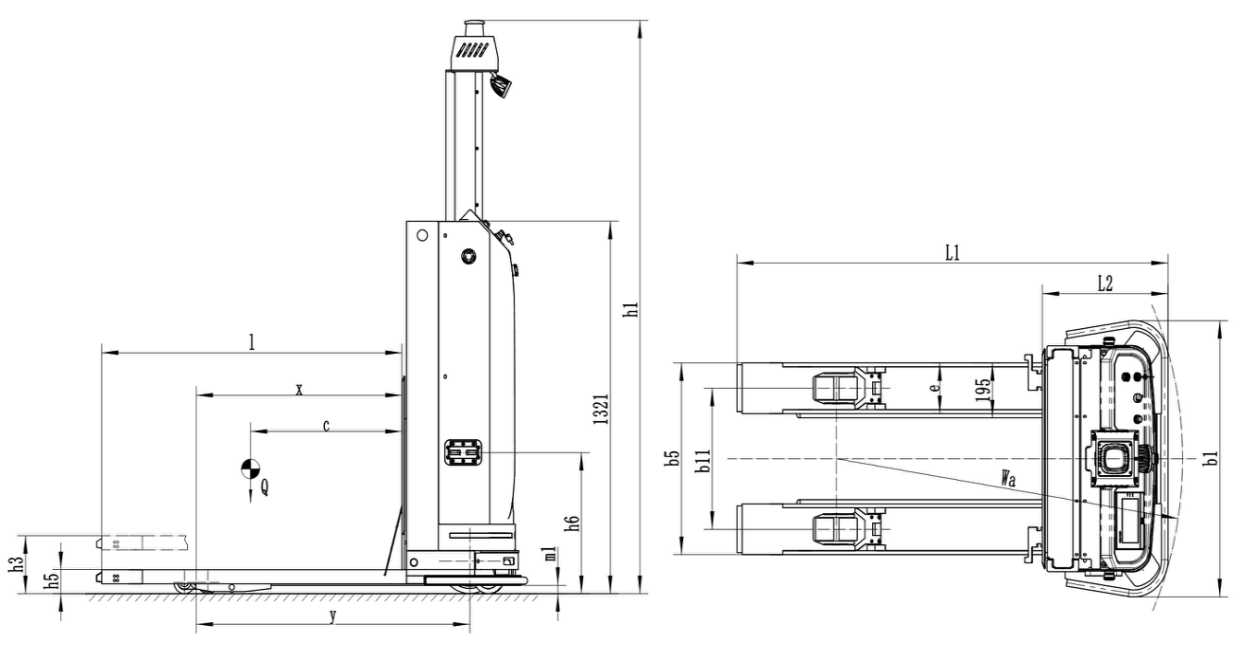

| Size | 4.1 | Overall Height | h1 | mm | 2035 | |
| 4.2 | Lift Height | h3 | mm | 205 | ||
| 4.3 | Lowered Fork Height | h5 | mm | 85 | ||
| 4.4 | Charger Brush Ground Clearance | h6 | mm | 500 | ||
| 4.5 | Overall Length | L1 | mm | 1721 | ||
| 4.6 | Frame Length(not including fork) | L2 | mm | 481 | ||
| 4.7 | Overall Width | b1 | mm | 980 | ||
| 4.8 | Fork size Length/Width/Height | l/e/s | mm | 1220/180/55 | ||
| 4.9 | Fork Outside Width | b5 | mm | 680 | ||
| 4.10 | Min Ground Clearance | m1 | mm | 30 | ||
| 4.11 | Min Turning Radius | Wa | mm | 1460 | ||
| 4.12 | Min 90 Turning Aisle | Ast | mm | 1915+200 | ||
| 4.13 | Pallet size 1000×1200 90 Turning Aisle | Ast | mm | 2030+200 | ||
| Note | 7.1 | Noise | dB(A) | ≤70 | ||
