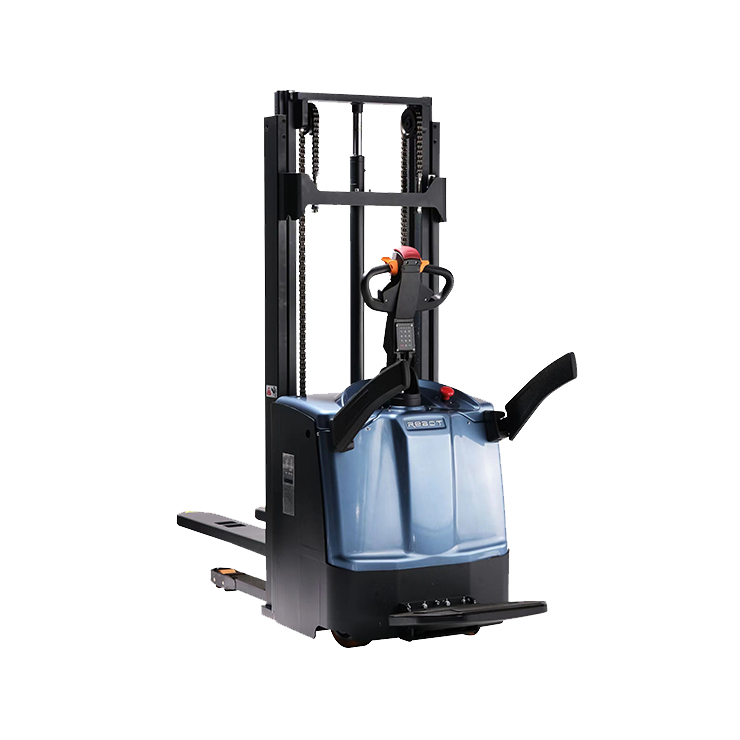

Light All Electric Forklift ▪ CDD14

This series of stacker trucks adopts a four point offset steering wheel chassis, with high configuration, clever structure, good safety, high efficiency, low electricity consumption, good stability, comfortable operation, small working channel, rich configuration, and low cost. The core components are all imported high-end configurations with more advanced performance. It can be widely applied to material handling operations in scenarios such as floors, warehouses, freight yards, workshops, supermarkets, etc.

Availability:



Inquire Add to Basket

Product Description

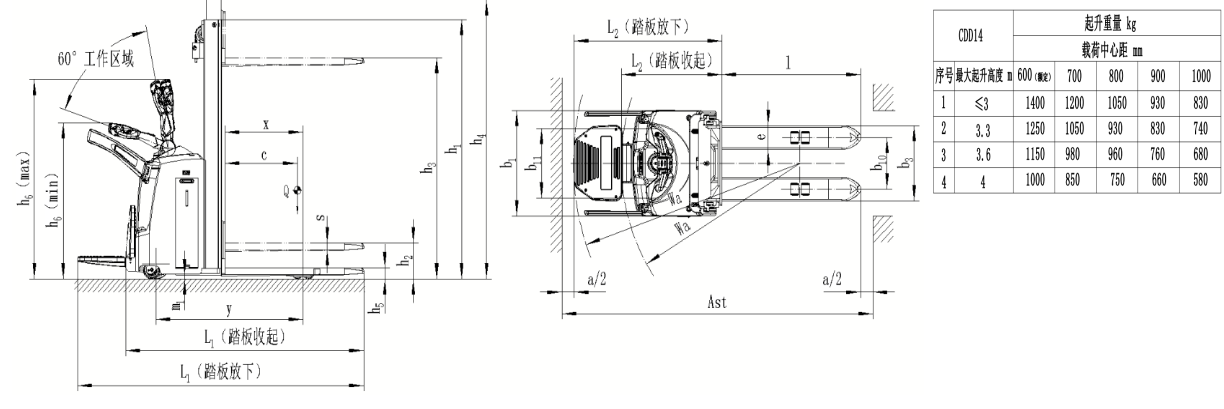

微信图片_20251024093904_44_42

Characteristic	1.1	Manufacture			i-REBOT
	1.2	STYLE NO			CDD14
	1.3	Power Type			Electric
	1.4	Drive			Stand-on
	1.5	Rated Capacity	Q	kg	1400
	1.6	Load Centre Distance	c	mm	600
	1.7	Front Overhang	x	mm	645
	1.8	Wheel Base	y	mm	1220
Weight	2.1	Weight(Including Accumulator )		kg	924
	2.2	Gross Axle Weight, Drive Side/Load Bearing side		kg	755/1695
	2.3	Unloaded Axle Weight, Drive Side/Load Bearing side		kg	715/335
Wheel	3.1	Tyres type			PU
	3.2	Drive Wheel Size		mm	Φ230×75
	3.3	Load Wheel Size		mm	Φ80×110
	3.4	Stabilizer Wheel Szie		mm	Φ140×60
	3.5	Tyres Quanity，Load Side(×=Load Wheel)/Load Side			1x-1/4
	3.6	Tread, Load Side	b10		390/500
	3.7	Tread, Drive Side	b11		528
Size	4.1	Lowered Mast Height（Overall Height）	h1	mm	2010
	4.2	Free Lift Height	h2	mm	0
	4.3	Lift Height	h3	mm	3000
	4.4	Mast Extended Height	h4	mm	3490
	4.5	Lowered Fork Height ( Forks are at their lowest position)	h5	mm	85
	4.6	Handle Height in Drive Position: Min/Max	h6	mm	1127/1430
	4.7	Overall Length：Pedal Stowed/Pedal Lowered	L1	mm	1985/2368
	4.8	Frame Length（not including fork）：Pedal Stowed/Pedal Lowered	L2	mm	835/1218
	4.9	Overall Width	b1	mm	800
	4.10	Fork Size LWH	l/e/s	mm	1150/180/55
	4.11	Fork Outside Width	b3	mm	570/680
	4.12	Min Ground Clearance	m1	mm	30
	4.13	90 Turning Aisle,Pallet size 1000×1200（1200Lengthwise on the Forks））：Pedal Stowed/Pedal Lowered	Ast	mm	2190/2585
	4.14	90 Turning Aisle,Pallet size 800×1200（800Lengthwise on the Forks）：Pedal Stowed/Pedal Lowered	Ast	mm	1990/2385
	4.15	Min Turning Radius：Pedal Stowed/Pedal Lowered	Wa	mm	1480/1875
Others	7.1	Drive Control Method			AC Speed Feedback
Others	7.2	Noise，EN12053		dB(A)	≤70

CDD14 Mast Parameters
SN	Lift Height h3（mm）	Lowered Mast Height h1（mm）	Cylinder Stroke （mm）	Extended Hright h4(mm)	Cylinder Strokeα/β（°）	Note
SN	Lift Height h3（mm）	Lowered Mast Height h1（mm）	Cylinder Stroke （mm）	Extended Hright h4(mm)	Cylinder Strokeα/β（°）	Note
1	2000	1510	980	2490
2	2300	1660	1130	2790
3	2500	1760	1230	2990
4	2700	1860	1330	3190
5	2900	1960	1430	3390
6	3000	2010	1480	3490
7	3300	2160	1630	3790
8	3600	2310	1780	4090
9	4000	2560	1980	4540
