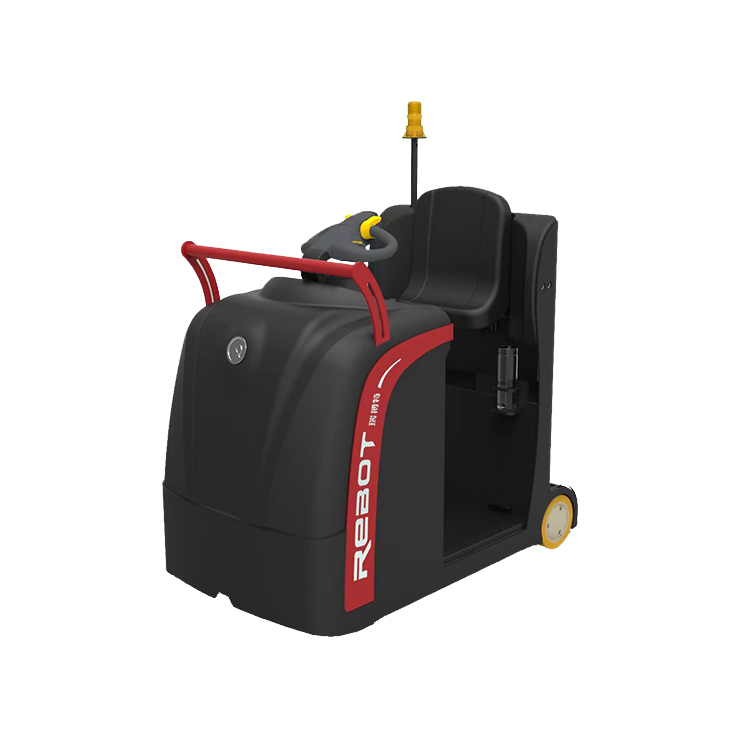

Electric Tractor ▪ QDD30/50-T

A station driving three point electric tractor designed with the latest advanced technology, equipped with an AC drive steering wheel system, fully open hood, rear pull battery compartment, adjustable traction pin, driver perception, manual fine adjustment switch, new steering wheel handle, and adjustable backrest.
It has the characteristics of cleanliness, environmental protection, stability and reliability, simple operation, comfort, and high operational efficiency. Widely applicable to traction operations in automobile manufacturing, logistics companies, warehouses, and other occasions.

Availability:



Inquire Add to Basket

Product Description

QDD30

Characteristic	1.1	Manufacture			i-REBOT
	1.2	STYLE NO				Q30TPS-Ⅶ	Q50TPS-Ⅶ
	1.3	Power Type			Electric
	1.4	Drive			Stand-on
	1.5	Rated load capacity	Q	kg		3000	5000
	1.6	Wheel base	y	mm	1085
Weight	2.1	Weight(Including Accumulator )		kg		950	1040
	2.2	Gross Axle Weight, Drive Side/Load Bearing side		kg		--/--	--/--
	2.2	Unloaded Axle Weight, Drive Side/Load Bearing side		kg		567/383	648/392
Tyres	3.1	Tyres type			PU
	3.2	Drive Wheel Size		mm		Φ230×75	Φ254×100
	3.3	Load Wheel Size		mm		Φ210×85	Φ210×85
	3.5	Tyres Quanity，Drive Wheel(×=Drive Wheel)/Load wheel			1×/2
	3.7	Tread, Load Side	b10	mm	719

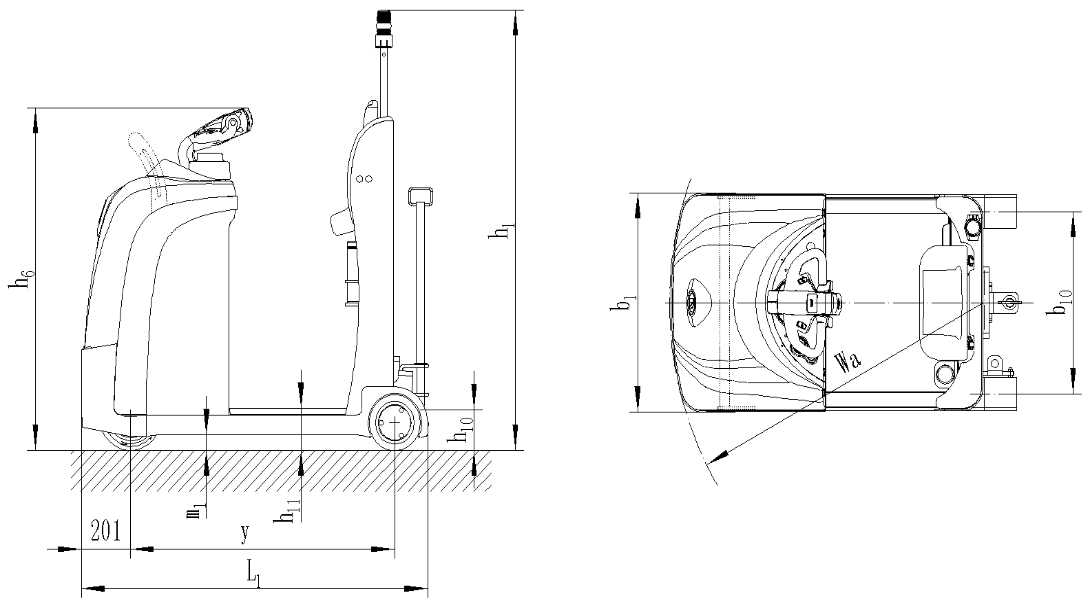

Size	4.1	Overall Height	h1	mm	1656
	4.2	Operating Height in Driving Position	h6	mm	1289
	4.3	Traction Hook Height	h10	mm	170~400
	4.4	Pedal Height	h11	mm	159
	4.5	Overall Length	L1	mm	1421
	4.6	Overall Width	b1	mm	822
	4.7	Min Ground Clearance	m1	mm	60
	4.8	Min Turning Radius	Wa	mm	1288
Others	7.1	Drive Control Method			AC Speed Feedback
Others	7.2	Noise，EN12053		dB(A)	≤70
