Semi-enclosed high-speed transporter ▪ CBD20B

Share to:

Semi-enclosed High-speed Transporter ▪ CBD20B

Our patented counterbalanced forklift series features a unique seat-and-handle design, electronic steering, a rear-mounted battery compartment, a five-point chassis, a floating vertical steering wheel, and a fully electronically controlled hydraulic system. These trucks offer simple operation, excellent visibility, and excellent value, making them ideal for working in narrow aisles. They also offer an exceptionally high cost-performance ratio, making them a viable alternative to similar counterbalanced forklifts in most situations.

Availability:



Inquire Add to Basket

Product Description

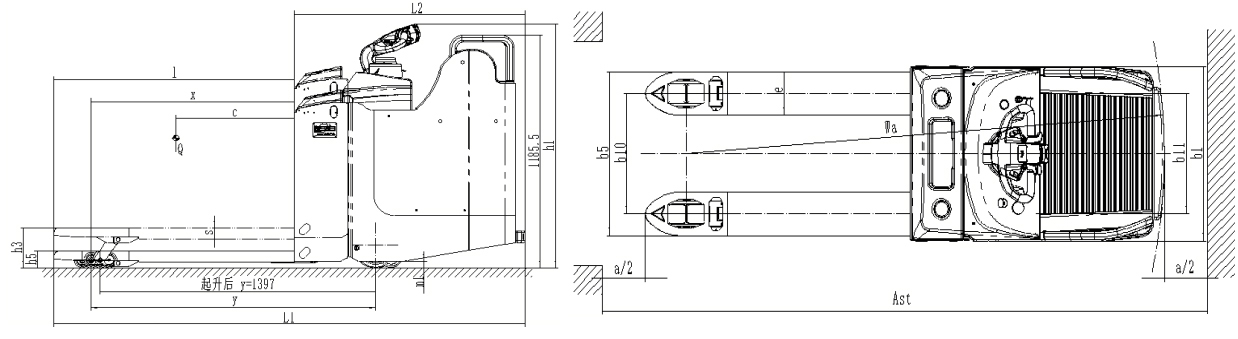

Characteristic	1.1	Manufacturer			REBOT
	1.2	Style NO			CBD20B
	1.3	Power Type			Electric
	1.4	Drive			Platform
	1.5	Rated Load Capacity	Q	kg	2000
	1.6	Load Center Distance	c	mm	600
	1.7	Front Overhang	x	mm	1032
	1.8	Wheel Base	y	mm	1443
Weight	2.1	Weight(Including accumulator)		kg	856
	2.2	Gross Axle Weight, drive side/Load Bearing side		kg	1292/1564
	2.3	Unloaded Axle Weight, drive side/Load Bearing side		kg	744/112
Wheel	3.1	Tyres Type			PU
	3.2	Drive Wheel		mm	Φ230x75
	3.3	Load Wheel		mm	Φ80x80
	3.4	Stabilizer Wheel		mm	Φ115x55
	3.5	Tyres quanity，Drive side(x=Drive side）/Load Bearing side			1x-2/4
	3.6	Tread, drive side	b10	mm	500
	3.7	Tread, load side	b11	mm	500
Size	4.1	Overall Height	h1	mm	1242
	4.2	Lift Height	h3	mm	205
	4.3	Lowered Fork Height（Forks Fully Lowered)	h5	mm	85
	4.4	Overall Length	L1	mm	2390
	4.5	Frame Length	L2	mm	1170
	4.6	Frame Width	b1	mm	726
	4.7	Fork Size Length/Width/Height	l/e/s	mm	1220/180/57
	4.8	Fork Outside Width	b5	mm	680
	4.9	Min Ground Clearance	m1	mm	35
	4.10	90 Turning Aisle Pallet size 1000×1200 (1200Place across the forks)	Ast	mm	2730+200
	4.11	90 Turning Aisle Pallet size 1000×1200 (1200 Place lengthwise along the forks)	Ast	mm	2547+200
	4.12	Min Turning Radius	Wa	mm	2202
Others	7.1	Drive Control Method			AC speed feedback
Others	7.2	Noise Level, Under EN12053		dB(A)	≤70
