Five Point Balanced Forklift ▪ CPD10/15-T

Share to:

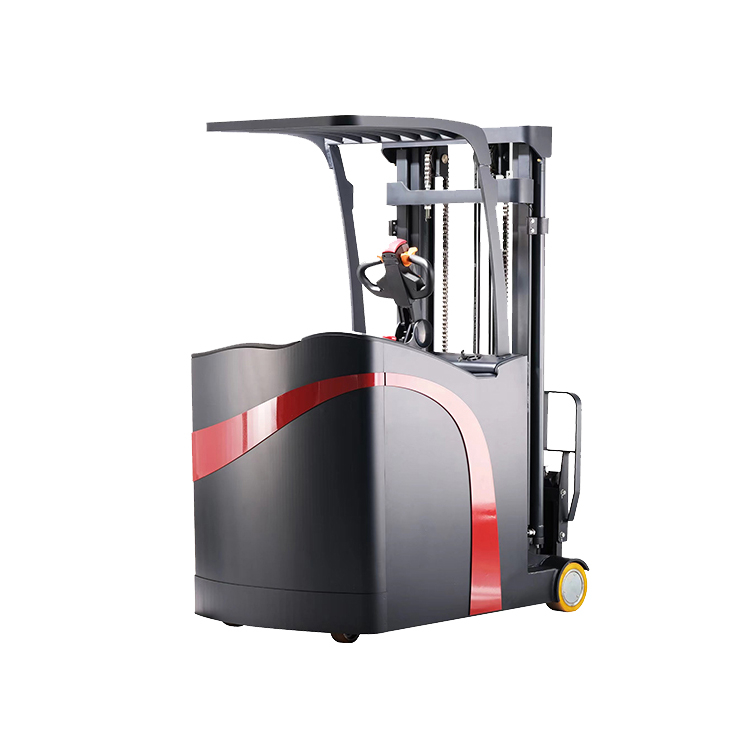

Five Point Balanced Forklift ▪ CPD10/15-T

The original patented product series of balanced weight stacker trucks adopts a unique design of seat and steering handle operation, equipped with electronic steering system, rear pull battery compartment, five pivot chassis, floating suspension vertical steering wheel, and fully electric hydraulic system. The whole machine is easy to operate, has a wide field of view, good cost-effectiveness, and is very suitable for working in narrow passages. At the same time, this type of vehicle has a high cost performance ratio and can replace similar balanced weight forklifts in most cases.

Availability:



Inquire Add to Basket

Product Description

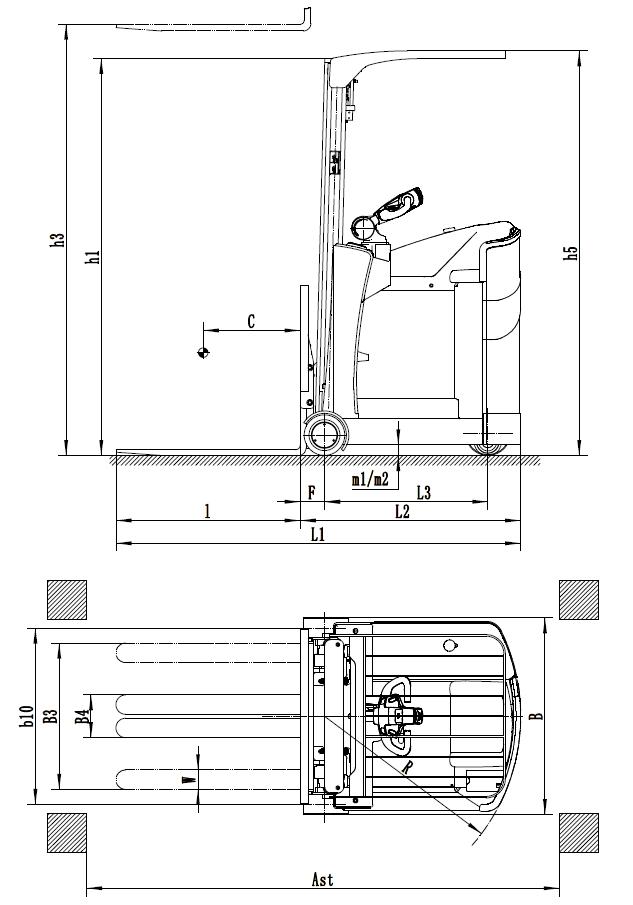

		Description	Specification	Mark	PCS	REBOT
Specification	1.1	Manufacturer				REBOT
	1.2	Style NO				CPD08-T	CPD10-T	CPD12-T	CPD15-T
	1.3	Rated Load Capacity		Q	kg	800	1000	1200	1500
	1.4	Load Centre Distance		c	mm	500	500	500	500
	1.5	Power Type	DC/AC，Open/Close			AC/Close	AC/Close	AC/Close	AC/Close
Size	2.1	Lift Height		h3	mm	3000	3000	3000	3000
	2.2	Free Lift Height		h2	mm	0	0	0	0
	2.3	Mast Tilt Angle	Front/Back	α/β	deg	/	/	1°/5°	1°/5°
	2.4	Fork Standard				ISO2328	ISO2328	ISO2328	ISO2328
	2.5	Fork Size	Length/Width/Height	s/e/l	mm	35/100/950	35/100/950	35/100/950	40/100/950
	2.6	Fork Adjustment	MAX/MIN	B3/B4	mm	754/215	754/215	754/215	754/215
	2.7	Overall Length	Frok Tip to Rear End	L1		2109	2109	2458	2568
	2.8	Frame Length	Frok Face to Rear End（mast vertical)	L2		1140	1140	1499	1499
	2.9	Overall Width		B	mm	1014	1014	1014	1014
	2.10	Mast Lowered Height		h1	mm	2045	2045	2010	2010
	2.11	Overall Height		h4	mm	3850	3850	3908	3908
	2.12	Overhead Guard Height		h5	mm	2085	2085	2045	2045
	2.13	Front Overhang		F	mm	130	130	134	134
	2.14	Min Turning Radius		R	mm	1110	1110	1570	1570
	2.15	Min 90 Turning Aisle			mm	1420	1420	1785	1785
	2.16	Right-Angle Stacking Aisle Width	1000×1000 Pallet	Ast	mm	2340	2340	2800	2800
Character	3.1	Travel Speed	Forward（Laden/Unladen）		km/h	5/5	5/5	5/5	5/5
	3.2	Travel Speed	Reverse（Laden/Unladen）		km/h	5/5	5/5	5/5	5/5
	3.3	Lifting Speed,	Laden/Unladen		mm/s	130/200	130/200	95/120	95/120
	3.4	Descent Speed	Laden/Unladen		mm/s	160/140	160/140	120/85	120/85
	3.5	Max Traction Force	Laden/Unladen S2 5 Minutes		N	1600	1600	1600	1800
	3.6	Max Gradeability	Laden/Unladen S2 5 Minutes		%	5/7	5/7	5/8	5/8
Weight	4.1	Overall Weight	Including Battery		kg	1965	2165	2205	2325
Walking Mechanism	5.1	Tyres Quantity	Front wheel/Back Wheel(×=Drive Wheel)			2/1×-2	2/1×-2	2/1×-2	2/1×-2
	5.2	Tyres Type	Front Wheel			PU	PU	PU	PU
	5.3	Tyres Type	Back Wheel			PU	PU	PU	PU
	5.4	Wheel base		L3	mm	842	842	1098	1098
	5.5	Track	Front Track		mm	909	909	909	909
	5.6	Track	Rear Track		mm	0	0	0	0
	5.7	Ground Clearance	Lowest	m1	mm	55	55	55	55
	5.8	Ground Clearance	Center of Wheelbase	m2	mm	55	55	55	55
	5.9	Service Brake	Mechanical / Hydraulic / Electrical / Air			Electromagnetism	Electromagnetism	Electromagnetism	Electromagnetism
Drive Device	6.1	Battery	Mode			Welded	Welded	Welded	Welded
	6.2		Voltage / Capacity		V/Ah	24/210	24/210	24/240	24/270
	6.3		Weight		kg	210	210	240	260
	6.4	Travel Motor	Power		kW	1.5	1.5	1.5	1.8
	6.5	Travel Motor	Controller			AC	AC	AC	AC
	6.6	Lift Motor	Power		kW	2.2	2.2	3	3
	6.7	Lift Motor	Controller			DC	DC	DC	DC
	6.10	Battery Charger	Mode（Equipped with a Battery/External）			External	External	External	External
	6.11		Charge Mode			Intelligent Charging	Intelligent Charging	Intelligent Charging	Intelligent Charging
	6.12		Phase number / Voltage		/V	Single Phase/220	Single Phase/220	Single Phase/220	Single Phase/220
	6.13		Charging Power		Kva	1.2	1.2	1.2	1.2
Others	7.1	Equipment Operating Pressure			Mpa	16	16	16	16
Others	7.2	Noise	Based on EN 12053		dB(A)	≤75	≤75	≤75	≤75

CPD08/10/12/15-T Three level fully free lifting gantry parameters

Serial number	Raise the height h3（mm）	Retract the door frame height h1（mm）	Maximum Freedom Enhancement height h2(mm)	When unfolded, the door frame height h4(mm)	Tilt angle α/β (°)	Remarks
Serial number	Raise the height h3（mm）	Retract the door frame height h1（mm）	Maximum Freedom Enhancement height h2(mm)	When unfolded, the door frame height h4(mm)	Tilt angle α/β (°)	Remarks
1	3500	1710	870	4338	1/5
2	3700	1810	970	4538	1/5
3	4000	1910	1070	4838	1/5
4	4300	2010	1170	5138	1/5
5	4500	2060	1220	5338	1/5
6	5000	2210	1370	5838	1/5
7	5300	2310	1470	6138	1/5
8	5500	2410	1570	6338	1/5
9	6000	2610	1770	6838	1/5
