| Characteristic | 1.1 | Manufacture |
|
| i-REBOT |
| 1.2 | STYLE NO |
|
| CBD20 | CBD25 | CBD30 |
| 1.3 | Power Type |
|
| Electric |
| 1.4 | Drive |
|
| Stand-on |
| 1.5 | Rated Capacity | Q | kg | 2000 | 2500 | 3000 |

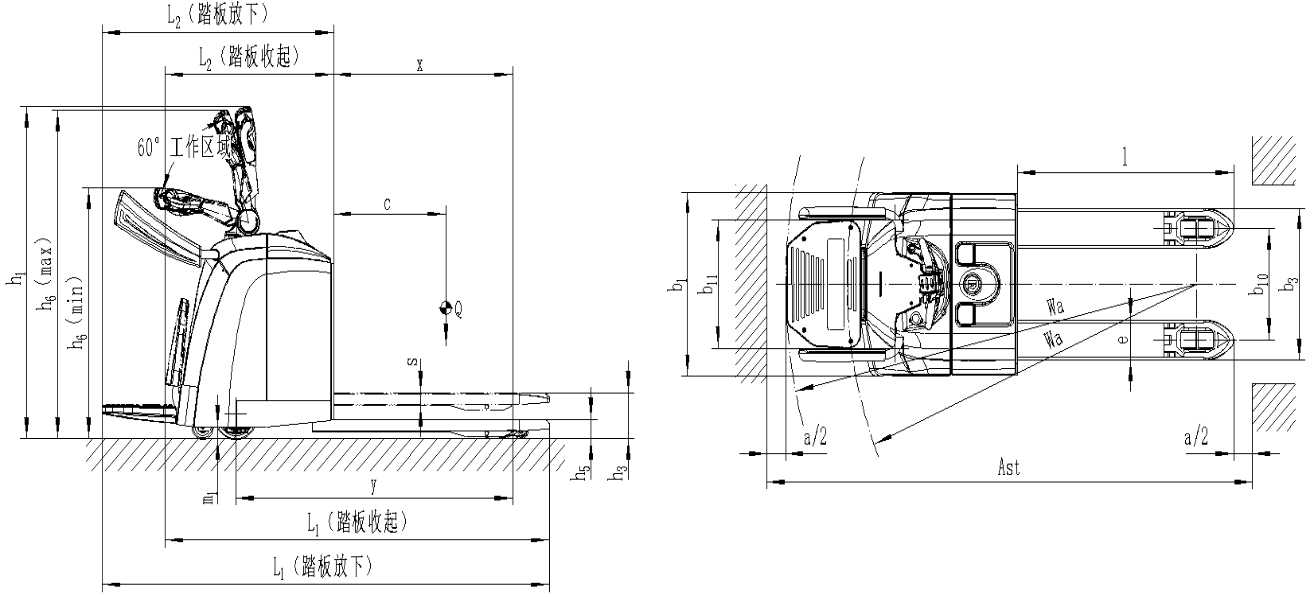

| 1.6 | Load Centre Distance | c | mm | 600 |
| 1.7 | Front Overhang | x | mm | 955 | 955 | 955 |
| 1.8 | Wheel Base | y | mm | 1474 | 1474 | 1474 |
| Weight | 2.1 | Weight(Including Accumulator ) |
| kg | 840 | 710 | 710 |
| Wheel | 3.1 | Tyres type |
|
| PU |
| 3.2 | Drive Wheel Size |
| mm | Φ230×75 |
| 3.3 | Load Wheel Size |
| mm | Φ80×80 |
| 3.4 | Stabilizer Wheel Szie |
| mm | Φ115×55 |
| 3.5 | Tyres Quanity：Drive Wheel（×=Drive Side）/Load Side |
|
| 1×-2/4 |
| 3.6 | Tread, Load Side | b10 | mm | 390/500 | 390/500 | 390/500 |
| 3.7 | Tread, Drive Side | b11 | mm | 574 |
| Size | 4.1 | Overall Height | h1 | mm | 1489 |
| 4.2 | Lift Height | h3 | mm | 205 |
| 4.3 | Lowered Fork Height ( Forks are at their lowest position) | h5 | mm | 85 |
| 4.4 | Operating Handle Height in Driving Position:Min/Max | h6 | mm | 1125/1475 |
| 4.5 | Overall Length：Pedal Stowed/Pedal Lowered | L1 | mm | 2047/2383 | 2047/2383 | 2047/2383 |
| 4.6 | Frame Length（not including fork）：Pedal Stowed/Pedal Lowered | L2 | mm | 896/1232 | 896/1232 | 896/1232 |
| 4.7 | Overall Width | b1 | mm | 825 | 825 | 825 |
| 4.8 | Fork Size L*W*H | l/e/s | mm | 1150/180/55 | 1150/180/55 | 1150/180/55 |
| 4.9 | Fork Outside Width | b3 | mm | 570/680 | 570/680 | 570/680 |
| 4.10 | Min Ground Clearance | m1 | mm | 54 |
| 4.11 | 90 Turning Aisle,Pallet size 1000×1200（1200Lengthwise on the Forks））：Pedal Stowed/Pedal Lowered | Ast | mm | 2665/2992 | 2665/2992 | 2665/2992 |
| 4.12 | 90 Turning Aisle,Pallet size 800×1200（800Lengthwise on the Forks）：Pedal Stowed/Pedal Lowered | Ast | mm | 2535/2861 | 2535/2861 | 2535/2861 |
| 4.13 | Min Turning Radius：Pedal Stowed/Pedal Lowered | Wa | mm | 1865/2192 | 1865/2192 | 1865/2192 |
| Others | 7.1 | Drive Control Method |
|
| AC Speed Feedback |
| 7.2 | Noise， According to EN12053 |
| dB(A) | ≤70 |
