Heavy Duty All Electric Stacker Series ▪ CDD16/20

Share to:

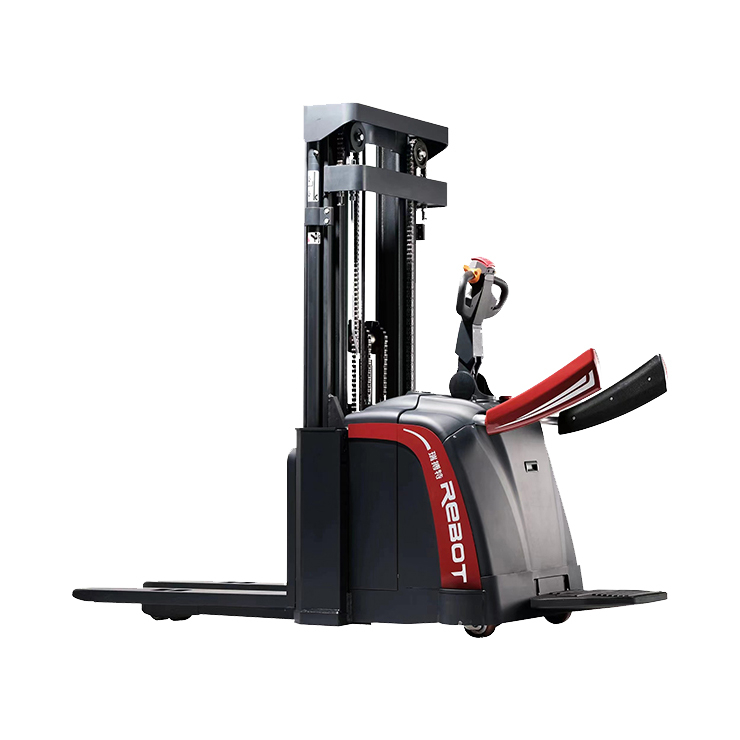

Heavy Duty All Electric Stacker Series ▪ CDD16/20

High strength body, integral leg cutting, five pivot chassis structure, floating suspension vertical steering wheel, equipped with high-strength gantry mechanism, and equipped with fully electric steering technology and hydraulic suspension automatic adjustment system.

Availability:



Inquire Add to Basket

Product Description

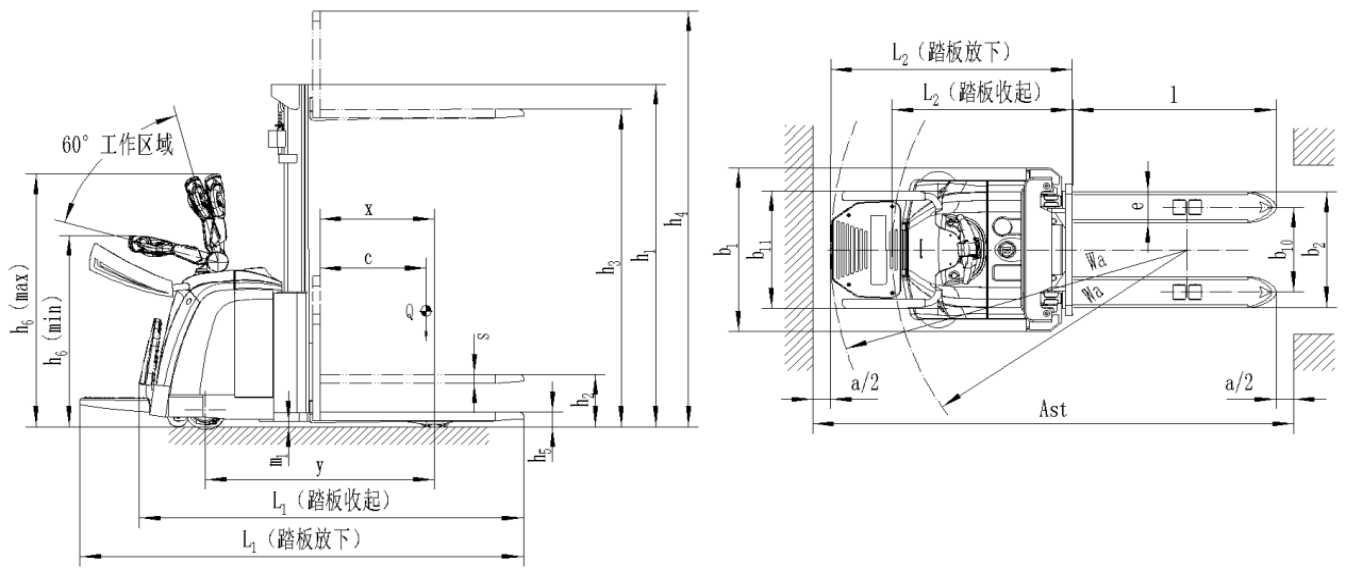

CDD16

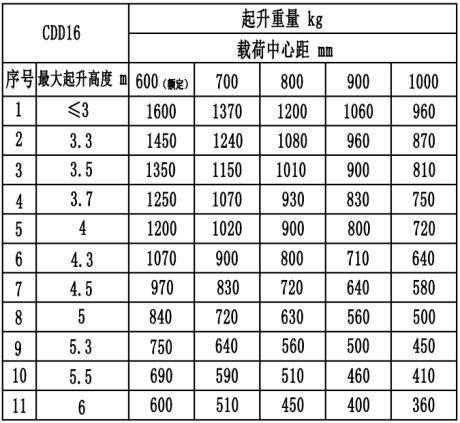

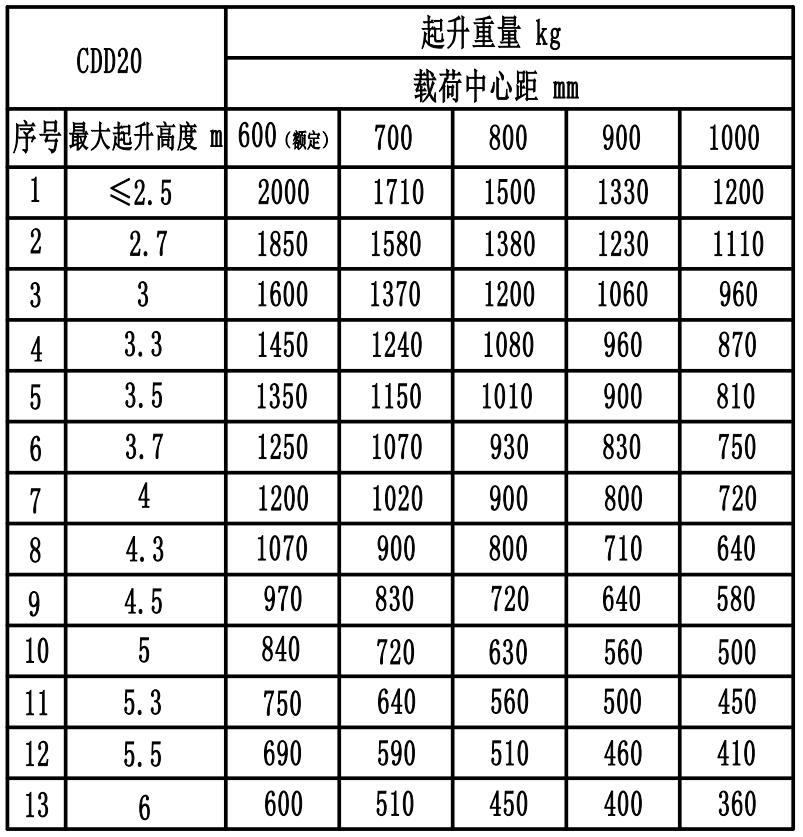

CDD16-1 CDD16-2

Characteristic	1.1	Manufacture			i-REBOT
	1.2	STYLE NO			CDD16	CDD16(Triplex Mast）	CDD20	CDD16W	CDD20W
	1.3	Power Type			Electric
	1.4	Drive			Stand-on
	1.5	Rated Capacity	Q	kg	1600	1600	2000	1600	2000
	1.6	Load Centre Distance	c	mm	600	600	600	500	500
	1.7	Front Overhang	x	mm/s	647	647	647	/	/
	1.8	Wheel Base	y	mm	1293	1327	1293	1293	1293
Weight	2.1	Weight(Including Accumulator )		kg	1240/1220	1450/1430	1240/1220	1457	1487
	2.2	Gross Axle Weight, Drive Side/Load Bearing side		kg	1170/1820	1126/2074	1228/2182	1170/1887	1228/2269
	2.3	Unloaded Axle Weight, Drive Side/Load Bearing side		kg	973/417	1114/486	995/415	973/484	995/504
Wheel	3.1	Tyres type			PU
	3.2	Drive Wheel Size		mm	Φ230×75
	3.3	Load Wheel Size		mm	Φ80×80
	3.4	Stabilizer Wheel Szie		mm	Φ115×55
	3.5	Tyres Quanity，Load Side(×=Load Wheel)/Load Side			1×-2/4
	3.6	Tread, Load Side	b11	mm	690
	3.7	Tread, Drive Side	b10	mm	500/390	500/390	500/390	1380	1380
Size	4.1	Lowered Mast Height（Overall Height）	h1	mm	2015	2060	2015	2035	1785
	4.2	Free Lift Height	h2	mm	0	1480	0	0	0
	4.3	Lift Height	h3	mm	3000	4500	2500	3000	2500
	4.4	Mast Extended Height	h4	mm	3580	5100	3080	3800	3300
	4.5	Operating Handle Height in Driving Position:Min/Max	h6	mm	1127/1489
	4.6	Lowered Fork Height ( Forks are at their lowest position)	h5	mm	85	85	85	40	40
	4.7	Overall Length：Pedal Stowed/Pedal Lowered	L1	mm	2169/2504	2200/2535	2169/2504	2169/2504	2169/2504
	4.8	Frame Length（not including fork）：Pedal Stowed/Pedal Lowered	L2	mm	1019/1354	1050/1385	1019/1354	1019/1354	1019/1354
	4.9	Overall Width	b1	mm	963
	4.10	Fork Size LWH	l/e/s	mm	1150/180/55	1150/180/55	1150/180/55	1070/100/40	1070/100/40
	4.11	Fork Outside Width	b3	mm	680/570	680/570	680/570	220~840	220~840
	4.12	Min Ground Clearance	m1	mm	31.5	31.5	31.5	46.5	46.5
	4.13	90 Turning Aisle,Pallet size 1000×1200（1200Lengthwise on the Forks））：Pedal Stowed/Pedal Lowered	Ast	mm	2566/2909	2596/2939	2566/2909	2619/2966	2627/2973
	4.14	90 Turning Aisle,Pallet size 800×1200（800Lengthwise on the Forks）：Pedal Stowed/Pedal Lowered	Ast	mm	2552/2895	2582/2925	2552/2895	2619/2966	2627/2973
	4.15	Min Turning Radius：Pedal Stowed/Pedal Lowered	Wa	mm	1670/2013	1730/2073	1670/2013	1670/2013	1670/2013
Others	7.1	Drive Control Method			AC Speed Feedback
Others	7.2	Noise，EN12053		dB(A)	≤70

CDD16 Triplex Full Free Mast Parameter

No.	Lift Height h 3（mm）	Lowered Mast Height h1（mm）	Full Free Lift h2(mm)	Extended Hright h4(mm)	Tilt Angleα/β（°）	Note

1	3500	1710	1130	4100

2	3700	1810	1230	4300

3	4000	1910	1330	4600

4	4300	2010	1430	4900

5	4500	2060	1480	5100

6	5000	2210	1630	5600

7	5300	2310	1730	5900

8	5500	2410	1830	6100

9	6000	2610	2030	6600

CDD16/20 2-Stages Mast Parameter

No.	Lift Heighth3（mm）	Lowered Mast Height h1（mm）	Full Free Lift h2(mm)	Extended Hright h4(mm)	Tilt Angle α/β（°）	Note

1	2000	1515	0	2580

2	2300	1665	0	2880

3	2500	1765	0	3080
9	4000	2565	0	4630
