| Characteristic | 1.1 | STYLE NO |
|
| CQD20-AGV( Duplex Mast ) | CQD20-AGV( Three-Stage Standard Mast ) |
| 1.2 | Power Type |
|
| Electric |
| 1.3 | Drive |
|
| AGV |
| 1.4 | Rated load capacity | Q | kg | 2000 |
| 1.5 | Load Center Distance | c | mm | 500 |
| 1.6 | Front overhang | x | mm | 124 | 134 |
| 1.7 | Wheel base | y | mm | 1470 | 1570 |
| Weight | 2.1 | Weight(including accumulator ) |
| kg | 2130 | 2320 |
| 2.2 | Gross Axle Weight, Drive side/Load Bearing side |
| kg | 1330/2800 | 1800/2520 |
| 2.3 | Unloaded Axle Weight, Drive side/Load Bearing side |
| kg | 1415/715 | 1460/780 |
| Wheel | 3.1 | Tyres type |
|
| PU |
| 3.2 | Drive Wheel Size | Φ×W | mm | Φ230×75 |
| 3.3 | Load Wheel Size | Φ×W | mm | Φ210×85 |
| 3.4 | Stabilizer Wheel Size | Φ×W | mm | Φ140×60 |
| 3.5 | Tyres Quanity，Drive Side(×=Drive Wheel)/Load side |
|
| 1x-2/2 |
| 3.6 | Tread, Drive side | b10 | mm | 696 |
| 3.7 | Tread, Load side | b11 | mm | 985 |

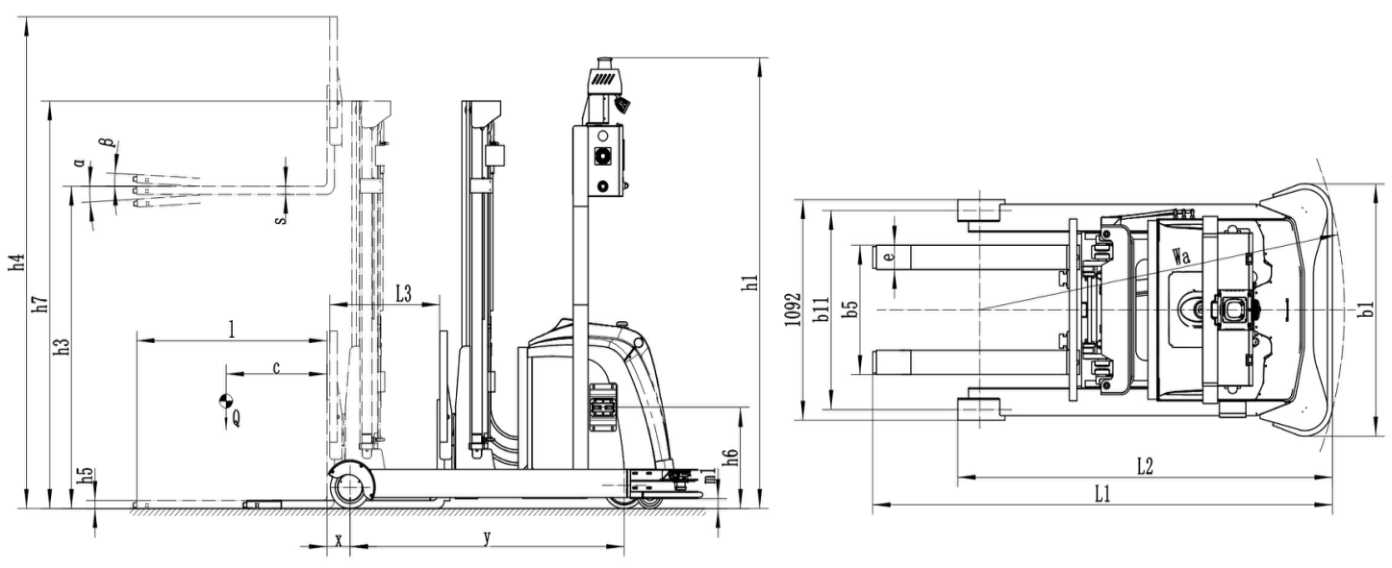

| Size | 4.1 | Overall Height | h1 | mm | 2232 |
| 4.2 | Free Lift Height | h2 | mm | 0 | 1540 |
| 4.3 | Lift Height | h3 | mm | 2500 | 4500 |
| 4.4 | Mast Extended Height | h4 | mm | 3340 | 5340 |
| 4.5 | Lowered Fork Height ( Forks are at their lowest position) | h5 | mm | 50 |
| 4.6 | Charger Brush Ground Clearance | h6 | mm | 500 |
| 4.7 | Fork Tilt Angle, Forward/Backward | α/β | ° | 1/5 |
| 4.8 | Overall Length | L1 | mm | 2465 | 2570 |
| 4.9 | Frame Length(not including fork) | L2 | mm | 2008 | 2108 |
| 4.10 | Forward Reach | L3 | mm | 590 |
| 4.11 | Overall Width | b1 | mm | 1249 |
| 4.12 | Fork size | l/e/s | mm | 1020/120/40 |
| 4.13 | Fork Outside Width | b5 | mm | 250~750 |
| 4.14 | Min Ground Clearance | m1 | mm | 50 |
| 4.15 | Min Turning Radius | Wa | mm | 1955 | 2055 |
| 4.16 | Min Right-Angle Stacking Aisle Width | Ast | mm | 2610+200 | 2715+200 |
| 4.17 | Right-Angle Stacking Aisle Width，Pallet size1000×1000 | Ast | mm | 2687+200 | 2792+200 |
| Noise | 7.1 | Noise |
| dB(A) | ≤75 |
