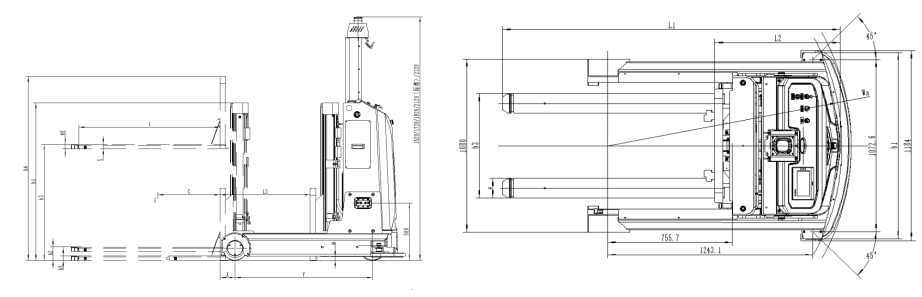

| Overall dimensions | Loading Parameter |
 |  |
| Characteristic | 1.1 | STYLE NO | CQD14A-YD(Two-stage) | ||
| 1.2 | Power Type | Electric | |||
| 1.3 | Drive | AGV | |||
| 1.4 | Rated load capacity | Q | kg | 1400 | |
| 1.5 | Load centre distance | c | mm | 500 | |
| 1.6 | Front overhang | x | mm | 160 | |
| 1.7 | Wheel base | y | mm | 1188 | |
| Weight | 2.1 | Weight(including accumulator ) | kg | 1980 | |
| 2.2 | Gross Axle Weight, drive side/Load Bearing side | kg | 1548/1832 | ||
| 2.3 | Unloaded Axle Weight, drive side/Load Bearing side | kg | 1536/444 | ||
| Wheel | 3.1 | Tyres type | PU | ||
| 3.2 | Drive Wheel | Φ×W | mm | Φ254×102 | |
| 3.3 | Load Wheel | Φ×W | mm | Φ210×85 | |
| 3.4 | Tyres quanity | 1/2 | |||
| 3.5 | Tread, drive side | b11 | mm | 971 | |
| Size | 4.1 | Mast Retracted Height | h1 | mm | 1370 |
| 4.2 | Free Lift Height | h2 | mm | 0 | |
| 4.3 | Lift Height | h3 | mm | 1600 | |
| 4.4 | Mast Extended Height | h4 | mm | 2230 | |
| 4.5 | Lowered Fork Height ( Forks are at their lowest position) | h5 | mm | 40 | |
| 4.6 | Charger Brush Ground Clearance | h6 | mm | 500 | |
| 4.8 | Overall Length | L1 | mm | 2104 | |
| 4.9 | Frame Length(not including fork) | L2 | mm | 1596 | |
| 4.10 | Overall Width | b1 | mm | 1184 | |
| 4.11 | Fork size | l/e/s | mm | 1220/121/40 | |
| 4.12 | Fork Outside Width | b5 | mm | 650（Adjustable） | |
| 4.13 | Min Ground Clearance | m1 | mm | 30 | |
| 4.14 | Min Turning Radius | Wa | mm | 1480 | |
| 4.16 | Min 90 Turning Aisle Pallet size: 1000×1200 | Ast | mm | 2265+200 | |
| Noise | 7.2 | Noise | dB(A) | ≤75 |

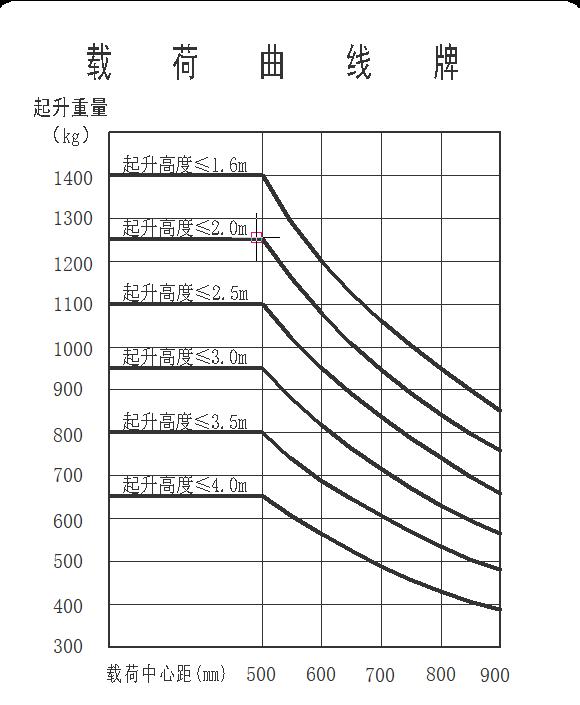

| Frame Parameter | Two sections of frames | 8.1 | Free lift height | h2 | mm | 0 | 0 | 0 | 0 | 0 | 0 |
| 8.2 | Lift height | h3 | mm | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | ||
| 8.3 | Mast Extended Height | h4 | mm | 2230 | 2630 | 3130 | 3630 | 4130 | 4630 | ||
| 8.4 | Closed Height | h7 | mm | 1370 | 1570 | 1820 | 2070 | 2320 | 2570 |
