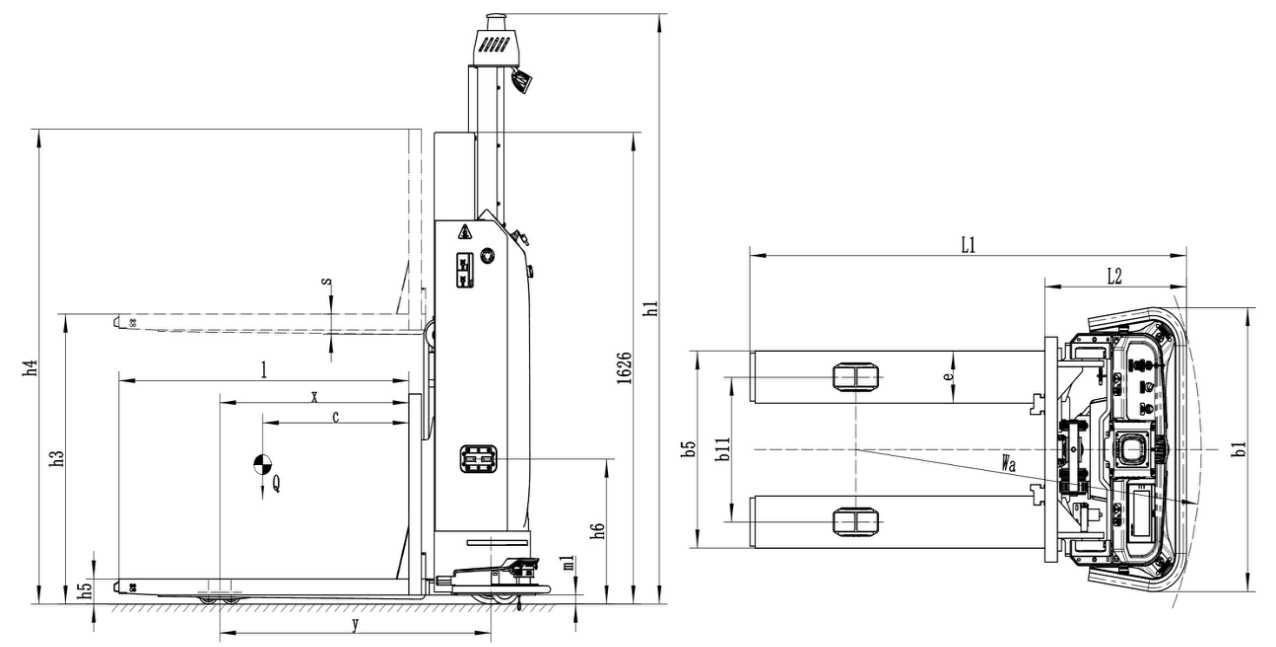

| Characteristic | 1.1 | STYLE NO | CDD20S-YD（Single Mast） | |||
| 1.2 | Power Type | Electric | ||||
| 1.3 | Drive | AGV | ||||
| 1.4 | Rated load capacity | Q | kg | 2000 | ||
| 1.5 | Load centre distance | c | mm | 600 | ||
| 1.6 | Front overhang | x | mm | 750 | ||
| 1.7 | Wheel base | y | mm | 1076 | ||
| Weight | 2.1 | Weight(including accumulator ) | kg | 770 | ||
| 2.2 | Gross Axle Weight, drive side/Load Bearing side | kg | 878/1892 | |||
| 2.3 | Unloaded Axle Weight, drive side/Load Bearing side | kg | 533/237 | |||
| Wheel | 3.1 | Tyres type | PU | |||
| 3.2 | Drive Wheel Size | Φ×W | mm | Φ230×75 | ||
| 3.3 | Load Wheel Size | Φ×W | mm | Φ80×65 | ||
| 3.4 | Stabilizer Wheel Szie | Φ×W | mm | Φ115×55 | ||
| 3.5 | Tyres Quanity，Load Side(×=Load Wheel)/Load Side | 1x-2/4 | ||||
| 3.6 | Tread, Drive Side | b10 | mm | 538 | ||
| 3.7 | Tread, Load Side | b11 | mm | 500 | ||
| Size | 4.1 | Overall Height | h1 | mm | 2035 | |
| 4.2 | Free Lift Height | h2 | mm | 0 | ||
| 4.3 | Lift Height | h3 | mm | 1000 | ||
| 4.4 | Mast Extended Height | h4 | mm | 1638 | ||
| 4.5 | Lowered Fork Height ( Forks are at their lowest position) | h5 | mm | 85 | ||
| 4.6 | Charger Brush Ground Clearance | h6 | mm | 500 | ||
| 4.7 | Overall Length | L1 | mm | 1732 | ||
| 4.8 | Frame Length(not Including Fork) | L2 | mm | 562 | ||
| 4.9 | Overall Width | b1 | mm | 980 | ||
| 4.10 | Fork Size | l/e/s | mm | 1150/180/70 | ||
| 4.11 | Fork Outside Width | b5 | mm | 680 | ||
| 4.12 | Min Ground Clearance | m1 | mm | 31.5 | ||
| 4.13 | Min Turning Radius | Wa | mm | 1370 | ||
| 4.14 | Min 90 Turning Aisle | Ast | mm | 1905+200 | ||
| 4.15 | 90 Turning Aisle,Pallet size 1000×1200（1200Lengthwise on the Forks） | Ast | mm | 2043+200 | ||
| Note | 7.1 | Noise | dB(A) | ≤75 | ||
