| Characteristic | 1.1 | STYLE NO | CBD20M-YD | |||
| 1.2 | Power Type | Electric | ||||
| 1.3 | Drive | AGV | ||||
| 1.4 | Rated Load Capacity | Q | kg | 2000 | ||
| 1.5 | Load Center Distance | c | mm | 600 | ||
| 1.6 | Front Overhang | x | mm | 925 | ||
| 1.7 | Wheel Base | y | mm | 1225 | ||
| Weight | 2.1 | Weight(Including accumulator ) | kg | 467 | ||
| 2.2 | Gross Axle Weight, Drive side/Load Bearing side | kg | 889/1580 | |||
| 2.3 | Unloaded Axle Weight, Drive side/Load Bearing side | kg | 349/118 | |||
| Wheel | 3.1 | Tyres Type | PU | |||
| 3.2 | Tread, Drive Side Size | Φ×W | mm | Φ230×75 | ||
| 3.3 | Tread, Load Sizd Size | Φ×W | mm | Φ80×80 | ||
| 3.4 | Tread,Stabilizer Wheel Size | Φ×W | mm | Φ115×55 | ||
| 3.5 | Tyres Quanity，Dive Wheel(×=Dive Wheel)/Stabilizer Wheel | 1x-4/4 | ||||
| 3.6 | Wheel Track，Stabilizer Wheel | b10 | mm | 445 | ||
| 3.7 | Wheel Track，Load Wheel | b11 | mm | 440 | ||

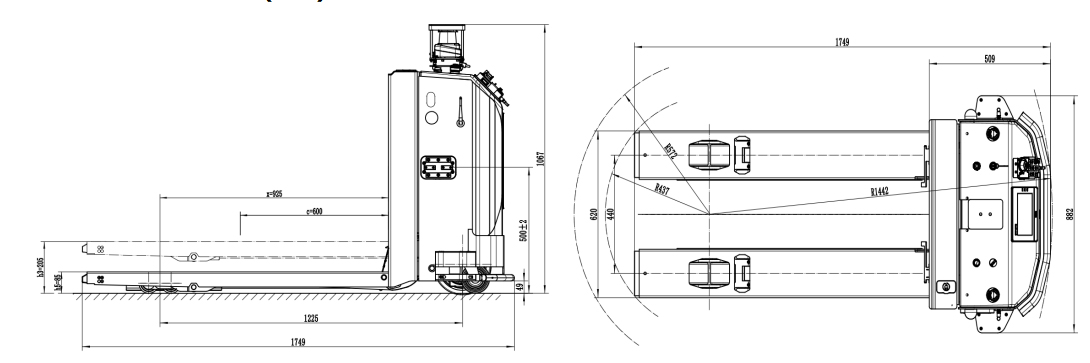

| Basic Dimensions | 4.1 | Overall Height | h1 | mm | 1067 | |
| 4.2 | Lift Height | h3 | mm | 205 | ||
| 4.3 | Lowered Fork Height ( Forks are at their lowest position) | h5 | mm | 85 | ||
| 4.4 | Charger Contact Plate Height from Geound | h6 | mm | 500 | ||
| 4.5 | Overall Length | L1 | mm | 1749 | ||
| 4.6 | Frame Length(not including fork) | L2 | mm | 509 | ||
| 4.7 | Overall Width | b1 | mm | 882 | ||
| 4.8 | Fork size | l/e/s | mm | 1220/180/65 | ||
| 4.9 | Fork Outside Width | b5 | mm | 620 | ||
| 4.10 | Min Ground Clearance | m1 | mm | 49 | ||
| 4.11 | Min Turning Radius | Wa | mm | 1442 | ||
| 4.12 | Min 90 Turning Aisle | Ast | mm | 1879+200 | ||
| 4.13 | Right-Angle Stack Aisle Width， Pallet size 1000×1200（1200Lengthwise on the Forks） | Ast | mm | 2014+200 | ||
| Noise | 7.1 | Noise | dB(A) | ≤70 | ||
