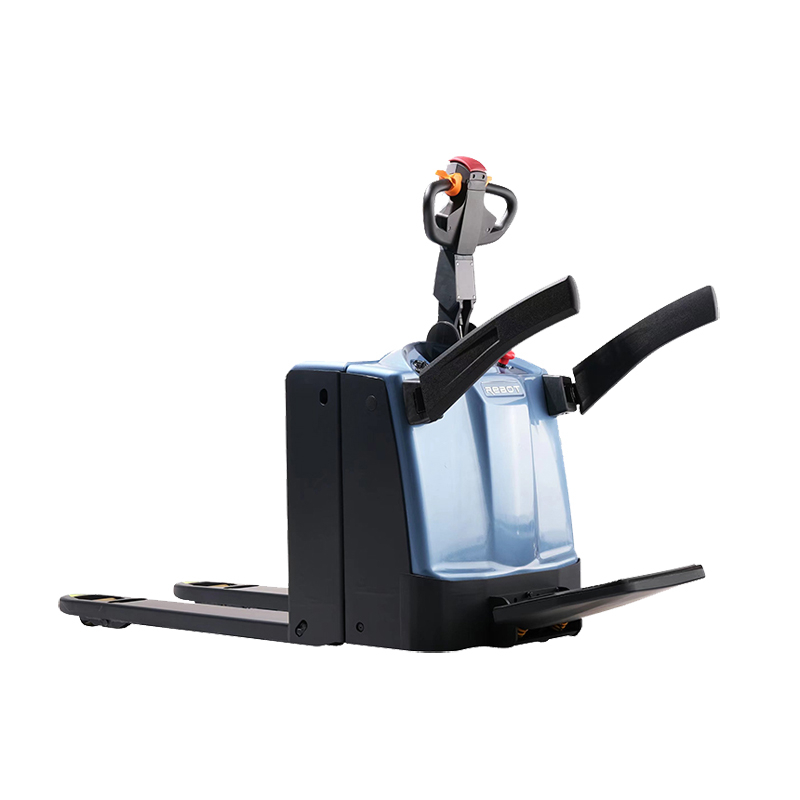

Light All Electric Transport Vehicle ▪ CBD20A-TZ

Share to:

Light All Electric Transport Vehicle ▪ CBD20A-TZ

This series of transport vehicles adopts the latest five point chassis structure design, equipped with a vertical center mounted steering wheel, a fully electric steering system, a password lock, a new link balance shock absorber mechanism, and a smoother body. The core components are all imported high-end configurations. It has the characteristics of comfortable operation, lower energy consumption, high configuration, high operational efficiency, small space requirements, and low cost. Widely applicable to material handling operations in scenarios such as floors, warehouses, freight yards, workshops, supermarkets, etc.

Availability:



Inquire Add to Basket

Product Description

CBD20A-TZ

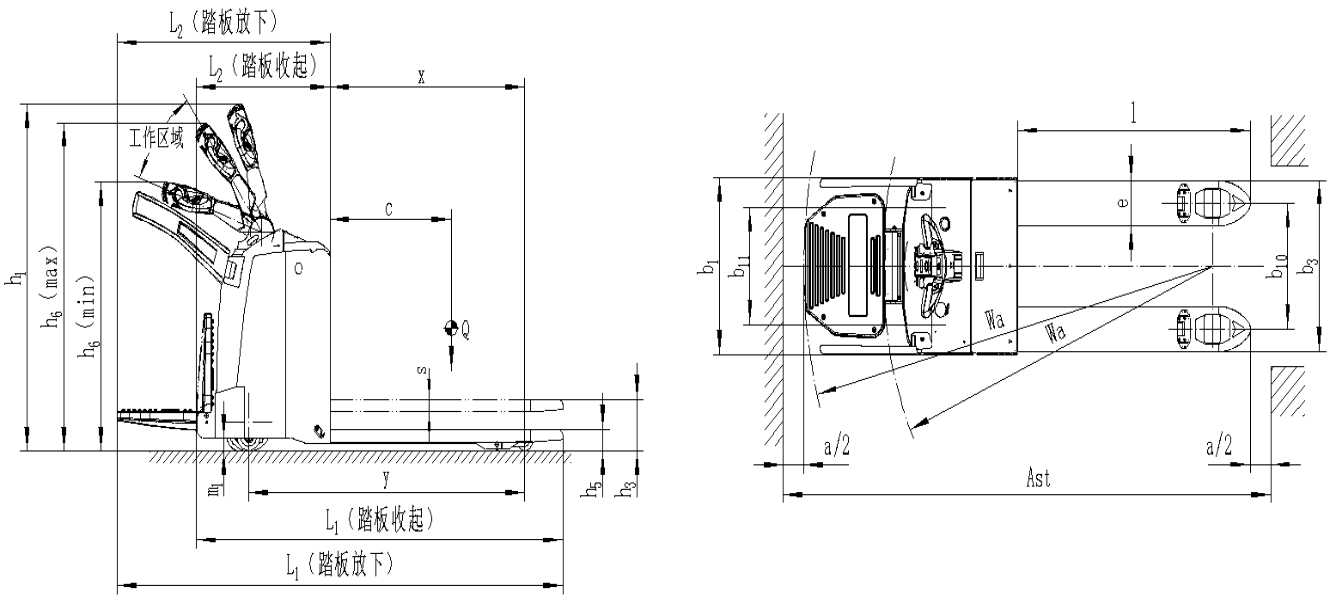

Characteristic	1.1	Manufacture			i-REBOT
	1.2	STYLE NO			CBD20A
	1.3	Power Type			Electric
	1.4	Drive			Stand-on
	1.5	Rated Capacity	Q	kg	2000
	1.6	Load Centre Distance	c	mm	600
	1.7	Front Overhang	x	mm	962
	1.8	Wheel Base	y	mm	1361
Weight	2.1	Weight(Including Accumulator )		kg	500
	2.2	Gross Axle Weight, Drive Side/Load Bearing side		kg	970/1550
	2.3	Unloaded Axle Weight, Drive Side/Load Bearing side		kg	420/100
Wheel	3.1	Tyres type			PU
	3.2	Drive Wheel Size		mm	Φ230×75
	3.3	Load Wheel Size		mm	Φ80×115
	3.4	Stabilizer Wheel Szie		mm	Φ115×55
	3.5	Tyres Quanity：Drive Wheel（×=Drive Side）/Load Side			1x-2/2
	3.6	Tread, Load Side	b10	mm	390/500
	3.7	Tread, Drive Side	b11	mm	500
Size	4.1	Overall Height	h1	mm	1378
	4.2	Lift Height	h3	mm	205
	4.3	Lowered Fork Height ( Forks are at their lowest position)	h5	mm	85
	4.4	Operating Handle Height in Driving Position:Min/Max	h6	mm	1068/1305
	4.5	Overall Length：Pedal Stowed/Pedal Lowered	L1	mm	1816/2199
	4.6	Frame Length（not including fork）：Pedal Stowed/Pedal Lowered	L2	mm	666/1049
	4.7	Overall Width	b1	mm	704
	4.8	Fork Size LWH	l/e/s	mm	1150/180/55
	4.9	Fork Outside Width	b3	mm	570/680
	4.10	Min Ground Clearance	m1	mm	50
	4.11	90 Turning Aisle,Pallet size 1000×1200（1200Lengthwise on the Forks））：Pedal Stowed/Pedal Lowered	Ast	mm	2410/2735
	4.12	90 Turning Aisle,Pallet size 800×1200（800Lengthwise on the Forks）：Pedal Stowed/Pedal Lowered	Ast	mm	2275/2600
	4.13	Min Turning Radius：Pedal Stowed/Pedal Lowered	Wa	mm	1628/2018
Others	7.1	Drive Control Method			AC Speed Feedback
Others	7.2	Noise，EN12053		dB(A)	≤70
